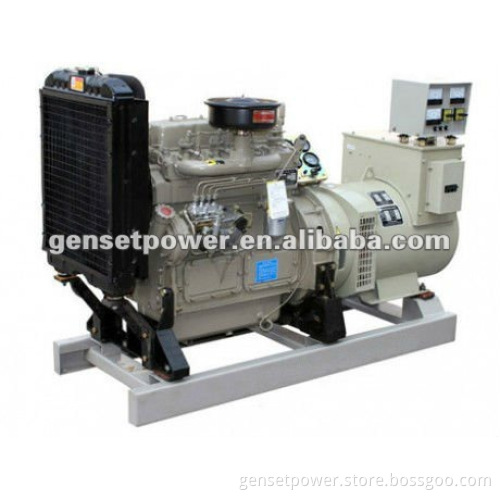

Best Price ! Ricardo Diesel Generator Set

Specifications Ricardo Diesel Generator Set

1. Ricardo Diesel Engine

2. Copy Stamford

3. Mechanical Governor

4. 100% Load Testing

  Best Price ! Ricardo Diesel Generator Set   Ricardo diesel generator set the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic   1,  20kw ~250kw Ricardo diesel generator set Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.   2,Main specification a,3-Phase, 50Hz1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)  b,12V/24V DC start motor and storage battery c,Brushless, Self-excited, IP21-23, insulation class H alternator   d, 40°C radiator as standard, 50°C is optional e,Key start panel control system as standard, digital auto-start panel is optional f,All generator sets are gone through rigorous testing  before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water   temperature, low oil pressure, battery charging fail, emergency stop)      3,Data of Diesel Generator Set

Prime Power	20kw-250kw	Standby Power	22kw-275kw
Rated Speed	1500rpm	Output Frequency	50hz/60hz
Phase	3	Rated Voltage	400v
Engine Brand	Ricardo	Alternator Brand	Stamford
Fuel Consumption	4L-200L	Fuel Tank capacity	8 hours
Voltage Regulation Rate	≤±1%	Random Voltage        Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%

  4,Engine Specification

Model	K4100D,K4100ZD,R4105ZD,R6105,R6113,R6126,STD12D
Cooing  Method	Forced water cooling
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke

  5,Alternator Specification

Alternator Brand	Stamford,Engga,Mecc-alte,Marathon ...
Exciter Type	Brushless, Self-excited
Rated Speed	1500/1800rpm
Rated Frequency	50/60hz
Phase	three or single
Rated Voltage	400V (Available with customer requirements)
Power	0.8
Voltage Adjust Range	≥5%
Protection Grade	IP21-23
Insulation Grade	H

  6,Digital Control Panel Controller Brand: Smartgen, Deepsea,ComAp Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown   7,Warranty and Maintenance 1) Do the full power load test for five hours before package. 2) One year or 1000 working hours, whichever comes first. 3) After expiration, we provide spare parts maintenance with low price.
