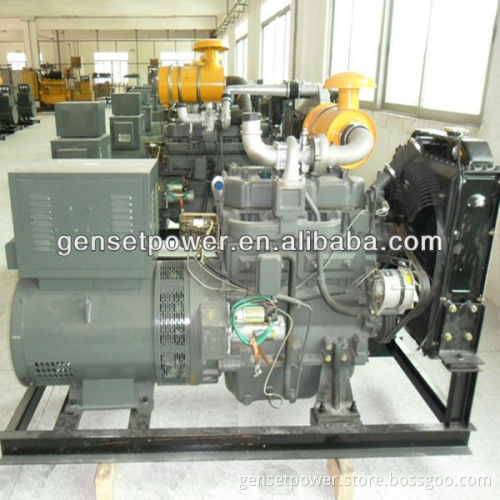

20kw to 220kw Diesel Power Weichai Genset

Specifications Weichai Genset

1)Weichai Engine:k4100D,R4105ZD,R6105AZLD

2)Copy Stamford Brushless Alternator

3)Smartgen Controler

4)50hz

20kw to 220kw Diesel Power Weichai Genset     weichai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic     1,  25kva ~250kw Weichai genset Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) adva Weichai Diesel Engine Genset  set nced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.   2,Main specification a,3-Phase, 50Hz1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)  b,12V/24V DC start motor and storage battery c,Brushless, Self-excited, IP21-23, insulation class H alternator   d, 40°C radiator as standard, 50°C is optional e,Key start panel control system as standard, digital auto-start panel is optional f,All generator sets are gone through rigorous testing  before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water   temperature, low oil pressure, battery charging fail, emergency stop)      3,Data of Generator Set

Prime Power	20kw-250kw	Standby Power	22kw-275kw
Rated Speed	1500rpm	Output Frequency	50hz/60hz
Phase	3	Rated Voltage	400v
Engine Brand	Ricardo	Alternator Brand	Stamford
Fuel Consumption	4L-200L	Fuel Tank capacity	8 hours
Voltage Regulation Rate	≤±1%	Random Voltage        Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%

  4,Engine Specification

Model	K4100D,K4100ZD,R4105ZD,R6105,R6113,R6126,STD12D
Cooing  Method	Forced water cooling
Rotating speed	1500/1800rpm
Governor system	electrical or mechanical governor
Aspiration mode	natural aspirated or turbocharged
Starting method	12/24V DC electric starting
Stroke	4 stroke

  5,Alternator Specification

Alternator Brand	Stamford,Engga,Mecc-alte,Marathon ...
Exciter Type	Brushless, Self-excited
Rated Speed	1500/1800rpm
Rated Frequency	50/60hz
Phase	three or single
Rated Voltage	400V (Available with customer requirements)
Power	0.8
Voltage Adjust Range	≥5%
Protection Grade	IP22
Insulation Grade	H

  6,Digital Control Panel Controller Brand: Smartgen, Deepsea,ComAp Control Panel: English interface,LED screen and touch buttons. Main Functions: 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown     7. Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
