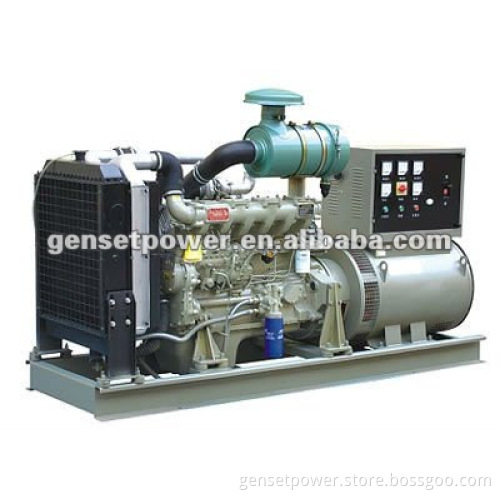

20kw to 150kw Best Price Weichai Marine Diesel Generator

Specifications Weichai Marine Diesel Generator

1.ISO9001 CE approved

2.OME offered

3.One year warranty

4.Alternator:stamford or optional

20kw to 150kw Best Price Weichai Marine Diesel Generator      Specification:   Weichai series small power diesel generator has four stroke, direct inject with small volume and large power station. The generator adopt STC or Brushless series, which has third-harmonic, self-excited and constant voltage. It can bitterly stimnated the generator with nice outline and the reliable performance. This kind of product is suitable for the customer who likes good quality but cheap price. But we can also couple LEROY SOMER generator to meet the customers requirement as their better options. About listed generating sets are all 50HZ, rated voltage is 400/230V, power factor is 0.8 lag, and the connecting is 3 phase & 4 wires. 60HZ generating sets can be supplied according to the customers requirements.     Alternator features: 1. Brushless, 4 poles, rotation magnet 2. IP21-23 (NEMA1) enclosure is standard for all industrial alternators 3. The insulation system is class H 4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts 5. Wide range of flange adaptors and single bearing disc coupling

Genset Model	Prime Powe		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRW-28	20	25	22	28	K4100D	236	4	3.6	100*115
GNRW-34	24	30	27	34	K4100D	236	4	3.6	100*115
GNRW-41	30	38	33	41	K4100D	236	4	3.6	100*115
GNRW-55	40	50	44	55	K4100ZD	238	4	3.6	100*115
GNRW-69	50	63	55	69	R4105ZD	238	4	4.3	105*115
GNRW-104	75	94	83	104	R6105ZD	238	6	6.5	105*115
GNRW-125	90	113	100	125	R6105ZLD	238	6	6.5	105*115
GNRW-138	100	125	110	138	R6105AZLD	238	6	6.7	105*115
GNRW-165	120	150	132	165	R6105IZLD	238	6	6.7	105*115
GMRW-206	150	188	165	206	6113AZLD	238	6	7.5	113*115
