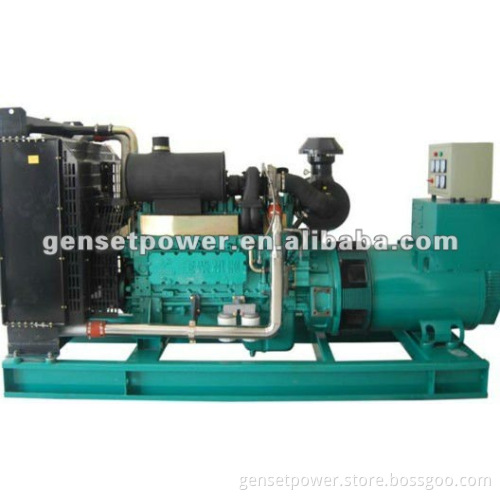

China Brand ! Yuchai Diesel Engine

Specifications China Brand ! Yuchai Diesel Engine

1.Engine:Chinese brand,yuchai

2.Stamford alternator

3.stable performance

    China Brand ! Yuchai Diesel  Engine     YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNR-23YC	16	20	18	23	YC2108D	≤235	2	2.199	108*120
GNR-34YC	24	30	27	34	YC2115D	≤235	2	2.493	115*120
GNR-55YC	40	50	44	55	YC4108D	≤199	4	4.21	108*115
GNR-63YC	45	56	50	63	YC4D70Z-D20	≤197	4	4.214	108*115
GNR-69YC	50	63	55	69	YC4D75Z-D20	≤199	6	6.494	105*125
GNR-88YC	64	80	70	88	YC6108D	≤199	6	6.871	108*125
GNR-104YC	75	94	83	104	YC6108ZD	≤197	6	6.871	108*125
GNR-125YC	90	113	100	125	YC6108ZLD	≤195	6	6.871	108*125
GNR-138YC	100	125	110	138	YC6B150D	≤195	6	6.871	108*125
GNR-165YC	120	150	132	165	YC6A190D	≤195	6	7.252	108*132
GNR-206YC	150	188	165	206	YC6112ZLD	≤195	6	7.8	112*132
GNR-275YC	200	250	220	275	YC6M320L-D20	≤189	6	9.84	120*145
GNR-481YC	350	438	385	481	YCT550L-D20	≤192	6	15.6	140*155
GNR-550YC	400	500	440	550	YC6T600L-D20	≤194	6	16.35	145*165

     The specification of engine: 1) engine model:  china yuchai 2) engine part :water tower,fan,fuel tank 3) governor system:electrical or mechanical governor 4) aspiration mode:natural, turbocharged 5) start method: 12V/24V DC electric starting 6) low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions     The specification of alternator: 1)alternator model: stamford, Leroy, Marathon.Engga 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4)power factor:3 phase 4 wire 5)Motor: bronze brushless     6) IP21-23 enclosure     Control Panel 1)Controller Brand: Smartgen, Deepsea,ComAp 2)Control Panel: English interface,LED screen and touch buttons. Main Functions: a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.   Standard accessories
Standard control panel, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
  Optional accessories:
Intelligence control panel, water heater, oil-water separator battery charger, daily fuel tank, sound-resistant canopy, weather-resistant canopy and mobile trailer
