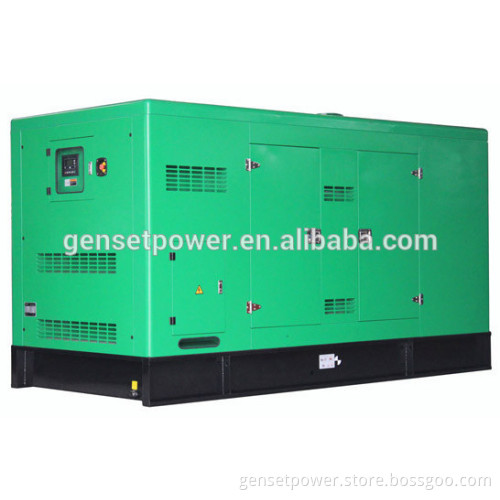

Best Price China Diesel Engine Silent 90 kva Yuchai Generator

Specifications 90 kva Yuchai Generator

1.Engine:Chinese brand yuchai

2.Stamford brushless ac alternator

3.stable performance

4.Water Cool

Best Price China Diesel Engine Silent 90 kva Yuchai Generator   YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNR-23YC	16	20	18	23	YC2108D	≤235	2	2.199	108*120
GNR-34YC	24	30	27	34	YC2115D	≤235	2	2.493	115*120
GNR-55YC	40	50	44	55	YC4108D	≤199	4	4.21	108*115
GNR-63YC	45	56	50	63	YC4D70Z-D20	≤197	4	4.214	108*115
GNR-69YC	50	63	55	69	YC4D75Z-D20	≤199	6	6.494	105*125
GNR-88YC	64	80	70	88	YC6108D	≤199	6	6.871	108*125
GNR-104YC	75	94	83	104	YC6108ZD	≤197	6	6.871	108*125
GNR-125YC	90	113	100	125	YC6108ZLD	≤195	6	6.871	108*125
GNR-138YC	100	125	110	138	YC6B150D	≤195	6	6.871	108*125
GNR-165YC	120	150	132	165	YC6A190D	≤195	6	7.252	108*132
GNR-206YC	150	188	165	206	YC6112ZLD	≤195	6	7.8	112*132
GNR-275YC	200	250	220	275	YC6M320L-D20	≤189	6	9.84	120*145
GNR-481YC	350	438	385	481	YCT550L-D20	≤192	6	15.6	140*155
GNR-550YC	400	500	440	550	YC6T600L-D20	≤194	6	16.35	145*165

    The specification of engine: 1) engine model:  china yuchai 2) engine part :water tower,fan,fuel tank 3) governor system:electrical or mechanical governor 4) aspiration mode:natural, turbocharged 5) start method: 12V/24V DC electric starting 6) low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions     The specification of alternator: 1)alternator model: stamford, Leroy, Marathon.Engga 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4)power factor:3 phase 4 wire 5)Motor: bronze brushless     6) IP21-23 enclosure     Control Panel 1)Controller Brand: Smartgen, Deepsea,ComAp 2)Control Panel: English interface,LED screen and touch buttons. Main Functions: a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc. b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc. c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.   Standard accessories
Standard control panel, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
  Optional accessories:
Intelligence control panel, water heater, oil-water separator battery charger, daily fuel tank, sound-resistant canopy, weather-resistant canopy and mobile trailer     Optional: 1. Trailer type 2. Soundproof / water proof 3. ATS (automatic transfer switch) 4. Parallel system 5. Remote system
