30kva to 150kva Diesel Electric Generator

  China Leading 30kva and 150kva Diesel Electric Generator

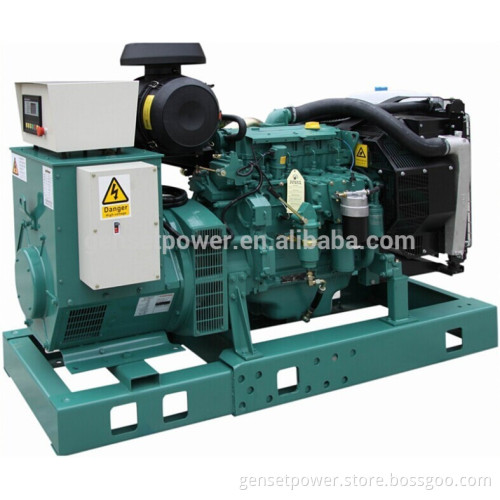

Volvo electric generator with VOLVO engine and brushless alternator, ensure the quality is perfect.

 Specification of  Electric Generator

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRV95	68	85	76	95	TD520GE	≤213	4	4.67	108*130
GNRV110	80	100	88	110	TAD531GE	≤211	4	4.67	108*130
GNRV137	100	125	110	137	TAD532GE	≤204	4	4.67	108*130
GNRV165	120	150	132	165	TAD731GE	≤204	6	6.51	108*130
GNRV200	144	180	160	200	TAD732GE	≤204	6	6.73	108*130
GNRV225	160	200	180	225	TAD733GE	≤204	6	7.28	108*130
GNRV275	200	250	220	275	TAD734GE	≤200	6	7.28	108*135
GNRV350	250	312	280	350	TAD941GE	≤198	6	9.36	131*150
GNRV413	300	375	330	413	TAD1241GE	≤198	6	12.3	131*150
GNRV450	320	400	360	450	TAD1242GE	≤198	6	12.3	131*150
GNRV500	360	450	400	500	TAD1640GE	≤198	6	16.12	144*165
GNRV560	400	500	450	560	TAD1641GE	≤198	6	16.12	144*165
GNRV625	450	563	500	625	TAD1642GE	≤198	6	16.12	144*165
GNRV688	500	625	550	688	TAD1643GE	≤198	6	16.12	144*165

    Volvo Diesel  Electric Generator Specifications of Volvo  electric generator
1) Output range: from 68KW (85kVA) up to 500kW (625kVA)
2) Diesel engine: Volvo series diesel engine
3) Alternator: Stamford, Marathon, Leroy Somer and Chinese brand with brushless
and "H" Class Insulation.
4) Forced curcuit Water-cooled
5) 8hrs operation base tank
6) Key start/auto startto start
7) Soundproof/weatherprooc, weatherproof canopy optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current   9) Standard configuration of electric generator:
a) Engine: Volvo series diesel engine
b) Engine type: water-cooled, in line four-stoke,  direct injection
c) Alternatolternator: brushless alterna alternator   10) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank(Fan and water tank cooling system)
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer

Electric Generator parts
          Controller panel       Silent type electric generator for option       Mobile trailer electric generator for option   Our factory           Our promise     1 year or 100o hours except Deutz generator (2years)
  We make the promise that we offer life-time and free technological support and problem solutions.
  Genor Power will also provide spare parts and technology for free in warranty, which for troubles caused by the shortness and defect of design and manufacture of electric generator.
  Even some faliures happen because of failure operation of after applicable expiration date, we also try our best to offer service.
