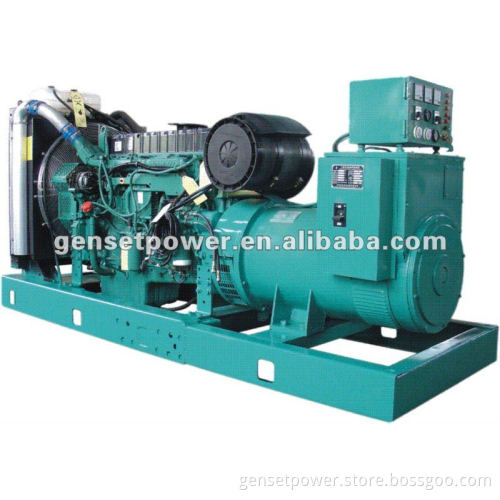

68kw to 500kw Volvo Open Type Generator

Specifications Volvo Open Type Generator

1. ISO9001,ISO14001:2004,CE certificate

2. Volvo OEM

3 low fuel consumption

  68kw to 500kw Volvo Open Type Generator     Volvo generator  have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRV95	68	85	76	95	TD520GE	≤213	4	4.67	108*130
GNRV110	80	100	88	110	TAD531GE	≤211	4	4.67	108*130
GNRV137	100	125	110	137	TAD532GE	≤204	4	4.67	108*130
GNRV165	120	150	132	165	TAD731GE	≤204	6	6.51	108*130
GNRV200	144	180	160	200	TAD732GE	≤204	6	6.73	108*130
GNRV225	160	200	180	225	TAD733GE	≤204	6	7.28	108*130
GNRV275	200	250	220	275	TAD734GE	≤200	6	7.28	108*135
GNRV350	250	312	280	350	TAD941GE	≤198	6	9.36	131*150
GNRV413	300	375	330	413	TAD1241GE	≤198	6	12.3	131*150
GNRV450	320	400	360	450	TAD1242GE	≤198	6	12.3	131*150
GNRV500	360	450	400	500	TAD1640GE	≤198	6	16.12	144*165
GNRV560	400	500	450	560	TAD1641GE	≤198	6	16.12	144*165
GNRV625	450	563	500	625	TAD1642GE	≤198	6	16.12	144*165
GNRV688	500	625	550	688	TAD1643GE	≤198	6	16.12	144*165

  Alternators Band for options: Stamford,LeroySomer, Marathon,Engga nsulation System: Class H Power Factor: 0.8 Phase/connecting method: 3 phase 4wire/Y type connection Excited type: Brushless, self excited or PMG Insulation: Class H Protection: IP21~IP23 Voltage regulation: AVR automatic control Altitude above sea level: ≤1000 meters Ambient air temperature: ≤40°C Relative air humidity: ≤ 90%    Controller system    1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering. 2.It can be with ATS electric control cabinet, including circuit breaker,  LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…    Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked   Standard Accessory     Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.   Optional Accessory     Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.
