Diesel Power 10kw Welding Generator

Specifications 10kw Welding Generator

1) Kubota Engine With Stamford

2) Imported From Japan

3) One Year Warranty

4) CE

         Diesel Power 10kw Welding Generator   Kubota  water-cooled diesel generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.       Generator set

Genset Model	GNRK10
Prime Power	10/ 12.5(KW / KVA)
Standby Power	11 / 14(KW / KVA)
Frequency (HZ)	50
Voltage (V)	127v/220v, 220v/380v,230v/400v, etc.
Power Factor	0.8
Phase	3

  Kubota  Engine

Engine Model	V1505-E2BG
Number of Cylinders	4
Cylinder arrangement	Vertical in line
Cycle	4 Stroke
Aspiration	Naturally Aspiration
Bore x Stroke	78 X 78.4 (mm x mm)
Displacement (L)	1.498
Compression ratio	22 : 1
Prime Power/Speed	13.7 / 1500(KW / rpm)
Standby Power/Speed	15.4/ 1500(KW / rpm)
Speed Governor	Electrical
Cooling System	Water-cooled, 40°C Radiator
lubrication capacity	22(L)
Coolant capacity	6.0(L)

  Original Stamford Alternator:

Alternator Brand	Original Stamford
Alternator Model	PI044F
Prime Power	10KW / 12.5KVA
Rated Current (A)	32.8,19.0,18.0,etc.
Rated Voltage	127V/220V,220V/380V, 230V/400V,etc
Frequency	50HZ   1500rpm
Power Factor(COS)	0.8
Phase / Connection	3-phase 4-wire , Y type connection
Excitation	Brushless, Self-excited
	Insulation Class: H .                Protection Grade : IP23.
Voltage Regulation	AVR

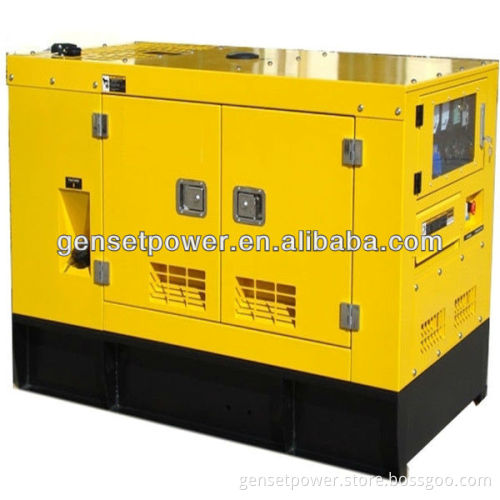

options: Leroy Somer, Marathon, Engga   Soundproof/Silent Box:  1 Cold steel materials of the canopy. & Best powder paint.  2 Stainless steel locks and hinges.  3 Fireproof, waterproof and dustproof.  4 Good ventilation system and anti-heat radiation struction.  5  Effective anti-vibration devices to ensure the generator set run steadily.  6  High quality soundproof materials could efficiently reduce noise. (lower than 68 dB at 7 meters away)  7 Emergency stop button mounted outside.  8  Side lockable door easy for maintenance and installation.  9 Lube oil and cooling water drains piped to exterior of the canopy. 10  Access to all weather conditions.     Control Plane Our Advantages: 1. Solve your technical problems in 24 hours and provide international warranty service for engines 2. Design the appearance form according to customers’ request 3. Polyester varnish for appearance protecting for shining and raining 4. Four hours testing before out factory 5. ISO9001 and CE certification    Silent Type Genset   Our Factory
