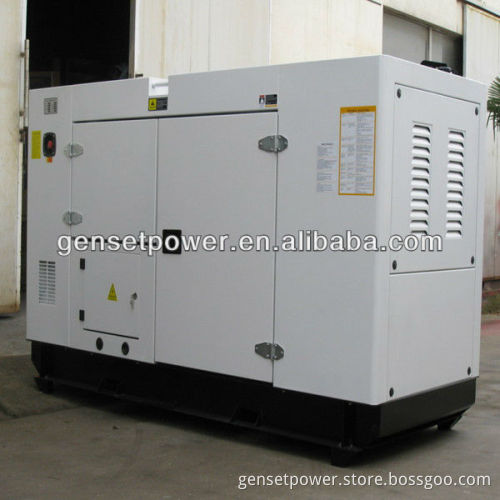

Silent 50KVA Welding Generator With Deutz Engine

Specifications 50KVA Welding Generator

1.Deutz Diesel Engine: TD226B-3D

2.Stamford Brushless Alterantor

3.1000 Hours Warranty

4.CE

   Silent 50KVA Welding Generator With Deutz Engine           DEUTZ engine is one of the most famous engines in the world. It gains plenty of users’ trust with its advanced performance. It is four strokes water cooled industrial engine.   It is based on German technique, combined the outstanding feature of compact structure,big power, low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low noise, convenient using and easy maintenance. Its exhaust emission comes up to  EURO 2,3 standards             Genset Data:

Genset Model	GNRD50
Rated Output	40Kw/50Kva
Standby Output	44Kw/55Kva
Voltage	220/230/240/380/400/440V
Frequency	50Hz/60Hz
Speed	1500/1800rpm
Type	3 phase 4 wire
Protect Class	IP23
Starting System	Electric Starting

  Engine:

Diesel Engine Model	TD226B-3D
Engine speed	1500rpm
Prime Power	45Kw
Standby Power	49.5Kw
Air intake way	Turbocharged
Cylinder No.	3
Bore*Stroke	105*120mm
Displacement	3.12L
Governor	Mechanical
Fuel Consumption	208g/kw.h
Cooling way	Water-cooled
Starting System	Electric Starting

    Deutz Generator Features:   1. Genuine Detuz diesel engine 2. Radiator 40°C max,fans are driven by belt, with safety guard 3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternato 4. Choice of manual/auto and AMF control panels and protection systems 5. Digital auto-start panel 6. Anti Vibration Suspension Absorber 7. Dry type air filter, fuel filter, oil filter 8. 10-hour operation base tank 9. Mould case circuit breaker 10. 24V DC start motor and storage battery 11. 24V charge alternator 12. 24V batteries, rack and cable 13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler 14. Comply with ISO and CE standards. 15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)   General Technical Data   1. Frequency: 50 & 60Hz 2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire 3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc 4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank 5. Monitoring meters and control switches 6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure   Control Panel:   1. Automatic control panel (AMF), LCD display 2. Four protection systems 3. Emergency stop    Optional:   1. Trailer type 2. Soundproof / open type 3. ATS(automatic transfer switch)   Quality control of Genor Power Genset     1.The genset canopy can be designed by customers demand free of charge. 2.Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at 7m. 3. Canopy color can be painted free of charge by customer demand. It is high quality paint. 4.All connection components and door lock are stainless steel. 5. We added oil filling inlet with lock  6. The oil box is separate made and then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage 7. The base frame is with forklift mouth which is easy to load and discharge 8. For Logo, we can paint customer's logo when the order is more than 5sets. 9. For technical specification or question, we can support you by our strong technical team   Open Type Deutz Generator    Silent Type Genset
