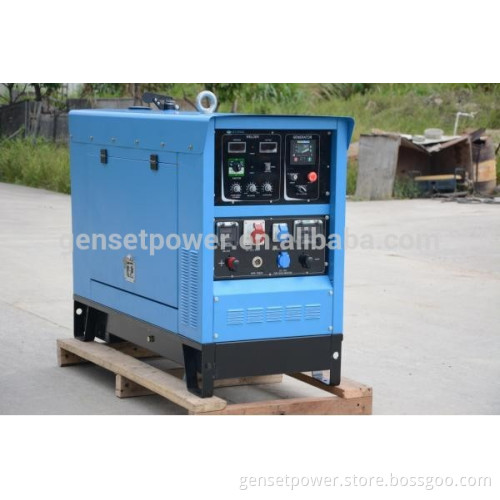

10kva 400amp ARC Silent generator welders

10kva 400amp ARC Silent generator welders      Diesel Welding Generator Features:   1.We Can offer both single position welding machine with MMA/TIG/FCAW function and dual positions welding machine whith MMA plus FCAW function, convenient for customer's choice 2.FCAW meets "filling & covering"welding process,fast,effective,and timesaving,can match Lincoln/Miller wire feeder. Strong auxiliary power:16KW output for three-phase, 6KW output for single-phase 3.Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range. 4.Owns current/voltage parameter preset function,the matched  wire feeder can show the preset/real current, also adjust welding current,easy to operate.

Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	387	430	500	387	430	500	387	430	500
Welding Voltage (V)	35.5	37.2	40	25.5	27.2	30	33.3	35.5	39
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6Kw
Engine
Brand	Kubota
Fuel	Diesel
Rated Power	26Kw(MAX 29Kw )
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel  Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance
Weight	690kg
Dimension(mm)	1480×850×1095
Protection Class	IP23
