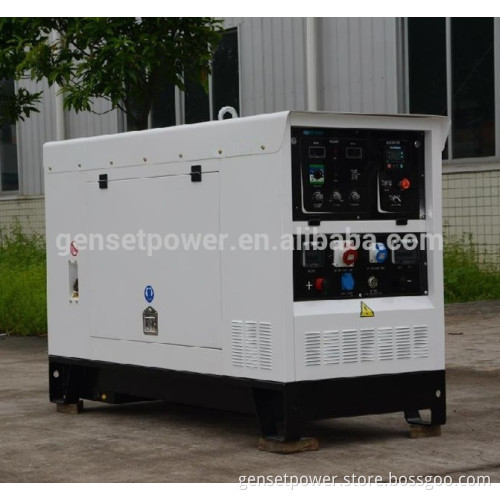

7kva to 30kva 200A to 500A Silent Diesel Welding Generator Set

7kva to 30kva 200A to 500A Silent  Diesel Welding Generator Set   Kubota  Diesel generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.

Welding output
Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	387	430	500	387	430	500	387	430	500
Welding Voltage (V)	35.5	37.2	40	25.5	27.2	30	33.3	35.5	39
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6Kw
Engine
Brand	Kubota
Fuel	Diesel
Rated Power	26Kw(MAX 29Kw )
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel  Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance
Weight	690kg
Dimension(mm)	1480×850×1095
Protection Class	IP23

    Engine Features: 1. World most famous brand diesel engine: Kubota 2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection 3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler 4. Machinery or electronic governing 5. Fuel injection pump 6. Electric motor starting system 7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner 8. Low discharge, and low fuel consumption 9. Installed conveniently and maintain easily
