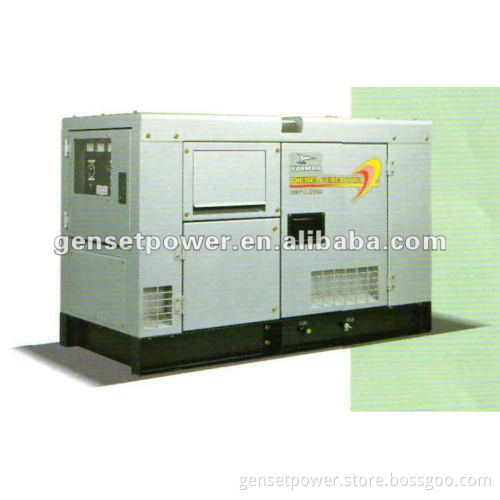

Japanese Yanmar Silent diesel generator

Specifications Japanese Yanmar Silent diesel generator

1.Yanmar diesel generator

2.Silent & Portable

3.One Year Warranty

4.CE

Japanese Yanmar Silent diesel generator

Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
	KW	KVA	KW	KVA			L x W x H	(kg)
GNR7	7	8.75	7.7	9.625	3TNV776	3	1580*810*930	300
GNR8.5	8.5	10.625	9.35	11.7	3TNV82A	3	1580*810*930	320
GNR10	10	12.5	11	13.75	3TNV88	3	1580*810*930	359
GNR12	12	15	13.2	16.5	3TNV84T	3	1580*810*930	422
GNR6	16	20	17.6	22	4TNV84T	4	1580*810*990	467
GNR25	25	31.3	27.5	34.375	4TNV98	4	1580*810*990	467
GNR32	32	40	35.2	44	4TNV98T	4	1580*810*1165	667
GNR40	40	50	44	55	4TNV106	4	1580*810*1165	730
GNR45	45	56.25	49.5	61.87	4TNV106T	4	1580*810*1165	730

    Specification: 1) Engine: YANMAR diesel engine , Water cooled 2) Alternator: 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference. 3) Output range: 50 Hz power outputs: 8.75-56.25 KVA
                        60 Hz Power outputs: 10-62.5 KVA 4) Frequency: 50 & 60Hz 5)3 Phase 4 Wire & 1 Phase 2 Wire 6)Speed: 1500rpm1800rpm   Control system: 1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
   b) Operation display:
       i) Unit voltage, tri-phase load current and frequency display
       ii) Water temperature, oil pressure display
       iii) Fuel level, fuel temperature display
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler   Soundproof/Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80DBA / 7m<70DBA    Supply standard configure: a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure d) Fan and water tank cooling system e) Flange connector
f) 12 / 24V starting motor and charge engine g) Air cleaner, fuel cleaner, oil cleaner h) On-board control panel i) MCCB air conservation switch    Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
