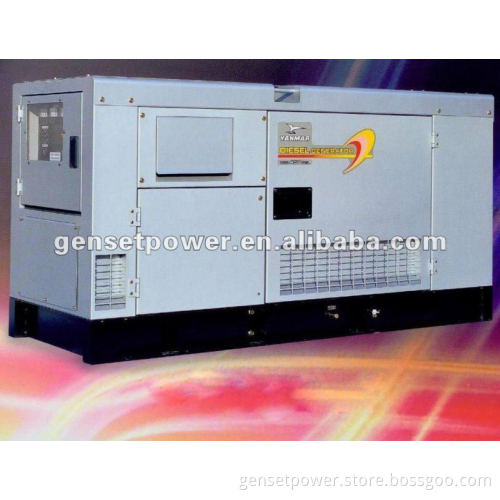

7kw to 45kw Yanmar electric generator

Specifications 1) Yanmar diesel generator

2) 1year warranty

3) engine imported from Japan



Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
	KW	KVA	KW	KVA			L x W x H	(kg)
GNR7YM	7	8.8	7.7	9.6	3TNV76	3	1580*810*930	300
GNR8.5YM	8.5	11	9.4	12	3TNV82A	3	1580*810*930	320
GNR10YM	10	13	11	14	3TNV88	3	1580*810*930	359
GNR12YM	12	15	13	17	3TNV84T	3	1580*810*930	422
GNR16YM	16	20	18	22	4TNV84T	4	1580*810*990	467
GNR25YM	25	31	28	34	4TNV98	4	1580*810*990	467
GNR32YM	32	40	35	44	4TNV98T	4	1580*810*1165	667
GNR40YM	40	50	44	55	4TNV106	4	1580*810*1165	730
GNR45YM	45	56	50	62	4TNV106T	4	1580*810*1165	730

     Specification: 1) Engine: YANMAR diesel engine , Water cooled 2) Alternator: 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference. 3) Output range: 50 Hz power outputs: 8.75-56.25 KVA
                            60 Hz Power outputs: 10-62.5 KVA 4) Frequency: 50 / 60Hz 5) 3 Phase 4 Wire / 1 Phase 2 Wire 6) Speed: 1500rpm / 1800rpm 7) Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V .  Single Phase Voltage Available: 100-250V   Control system: 1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
   b) Operation display:
       i) Unit voltage, tri-phase load current and frequency display
       ii) Water temperature, oil pressure display
       iii) Fuel level, fuel temperature display
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler   Silent Box: 1. Excellent ventilation 2. Oil tank mounted on base frame for 12 Hours working 3. Highly Corrosion Resistant construction 4. Excellent Access for Maintenance 5. Security and Safety 6. 1m<80 dB / 7m<70dB
