7kw to 45kw japanese portable home generator

Specifications 1)Yanmar engine from Japan

2)Stamford,Marathon alternator

3)Deepsea,ComAp control module

4)1 year warranty

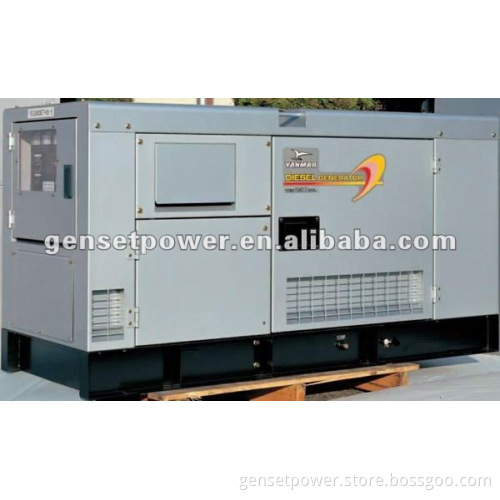

  Genor  diesel generator set install original Yanmar diesel engine from Japan, with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
	KW	KVA	KW	KVA			L x W x H	(kg)
GNR7YM	7	8.8	7.7	9.6	3TNV76	3	1580*810*930	300
GNR8.5YM	8.5	11	9.4	12	3TNV82A	3	1580*810*930	320
GNR10YM	10	13	11	14	3TNV88	3	1580*810*930	359
GNR12YM	12	15	13	17	3TNV84T	3	1580*810*930	422
GNR16YM	16	20	18	22	4TNV84T	4	1580*810*990	467
GNR25YM	25	31	28	34	4TNV98	4	1580*810*990	467
GNR32YM	32	40	35	44	4TNV98T	4	1580*810*1165	667
GNR40YM	40	50	44	55	4TNV106	4	1580*810*1165	730
GNR45YM	45	56	50	62	4TNV106T	4	1580*810*1165	730

    Diesel engine: Yanmar engine a) Governer Method:electrical or mechanical governor c) Wind-cooled or Water cooled d) Intake method:Natural apirated or turbocharged    Alternator a) alternator: Leroy Somer, Stamford, or Marathon etc. b) Inspiration Method: Natural Aspirated or Turbocharged c) Excitation Way: Brushless Excitation d) Governor Method: Electrical or Mechanical Governor e) Cylinder:3L~ 4L f ) 3ph:star,delta g) Rated power factor:0.8(lagged) h) Standard 2/3 pitch windings i) Voltage Regulation:± 0.5% j) Exciter type:PRET or Shunt k) Votagle regulator: AVR (Automatic Voltage regulator)   Control system: a)Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current b) Operation display: i)Unit voltage, tri-phase load current and frequency display  ii)Water temperature, oil pressure display   iii)Fuel level, fuel temperature dieplay  iv)Audible and visual alarm lamps and buzzers c)Emergency stop button d)Three protection   Our Advantages: a) Solve your technical problems in 24 hours and provide international warranty service for engines b)Design the appearance form according to customers’ request c)Polyester varnish for appearance protecting for shining and raining d) ISO9001 and CE certification e)All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
