7kw to 45kw japanese portable generating set

Specifications 1)Yanmar engine from Japan

2)Stamford,Marathon alternator

3)Deepsea,ComAp control module

4)68dB at 7m away

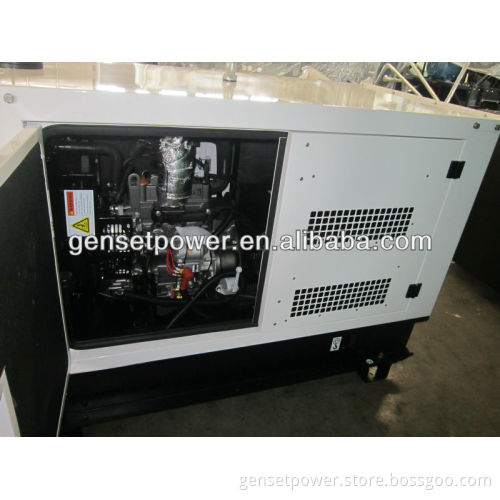

                     Genor  diesel generator set install original Yanmar diesel engine from Japan, with Stamford or Marathon alternator and Auto-start controller.


Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
	KW	KVA	KW	KVA			L x W x H	(kg)
GNR7YM	7	8.8	7.7	9.6	3TNV76	3	1580*810*930	300
GNR8.5YM	8.5	11	9.4	12	3TNV82A	3	1580*810*930	320
GNR10YM	10	13	11	14	3TNV88	3	1580*810*930	359
GNR12YM	12	15	13	17	3TNV84T	3	1580*810*930	422
GNR16YM	16	20	18	22	4TNV84T	4	1580*810*990	467
GNR25YM	25	31	28	34	4TNV98	4	1580*810*990	467
GNR32YM	32	40	35	44	4TNV98T	4	1580*810*1165	667
GNR40YM	40	50	44	55	4TNV106	4	1580*810*1165	730
GNR45YM	45	56	50	62	4TNV106T	4	1580*810*1165	730

    Diesel engine a) World most famous brand diesel engine: Yanmar b) Multi-cylinder in-line or veer engine, 4-stroke, direct injection c) Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler d) Machinery or electronic governing e) Fuel injection pump f)  Electric motor starting system g) Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner h) Low discharge, and low fuel consumption i)  Installed conveniently and maintain easily    Alternator a) alternator: Leroy Somer, Stamford, or Marathon etc. b) Inspiration Method: Natural Aspirated or Turbocharged c) Excitation Way: Brushless Excitation d) Governor Method: Electrical or Mechanical Governor e) Cylinder:3L~ 4L f ) 3ph:star,delta g) Rated power factor:0.8(lagged) h) Standard 2/3 pitch windings i) Voltage Regulation:± 0.5% j) Exciter type:PRET or Shunt k) Votagle regulator: AVR (Automatic Voltage regulator)   Control system: a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current. b) Operation display:    1) Unit voltage, tri-phase load current and frequency display       2) Water temperature, oil pressure display       3) Fuel level, fuel temperature display       4) Audible and visual alarm lamps and buzzers   Warranty and Maintenance a) Do the full power load test for five hours before package. b) One year or 1000 working hours, whichever comes first. c) After expiration, we provide spare parts maintenance with low price.
