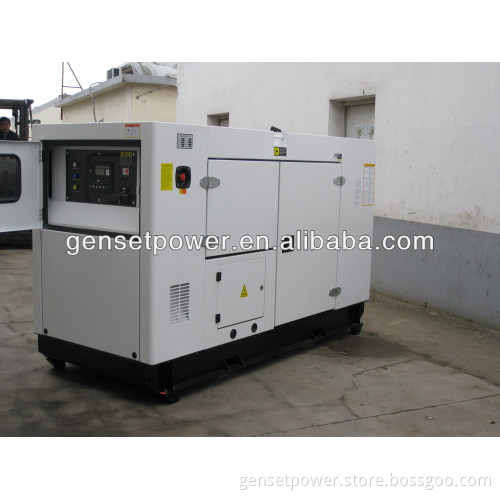

Water Cooled Diesel Engine Mitsubishi Generator 7.5kw

Specifications Mitsubishi Generator 7.5kw

1)Output Power:7.5kw

2)Low Fuel Consumption

3)One Year Warranty

4)CE & ISO 9001

Water Cooled Diesel Engine Mitsubishi Generator 7.5kw      Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502 Technical requirement of special diesel generating set for telecom. Voltage Regulation(%):Steady state≤±1 Transient state -15~+20 Frequency Regulation(%):Steady state≤±1 Transient state -7~+10 Voltage Fluctuation ratio(%):≤0.5 Frequency Fluctuation ratio(%):≤0.5 Voltage stabilization time(When the load changes suddenly): ≤1S Frequency stabilization time(When the load changes suddenly): ≤3S Waveform Distortion(%):≤5 Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820 To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.   Diesel Engine Stroke: 4 Combustion system: Direct spray or Electronic spray Start: DC start Cooling: Coolant radiator with fan   AC Generator   Structure Characteristics: Single bearing, automatic voltage regulation (AVR) Excitation: Brushless & self-excited Insulation: H grade Level of protection: IP21 or IP23   Control Box   Manual/Automatic start & stop controller Various Monitor Meter and Optional Switch Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional) MCCB for Short circuit & Overload (optional) High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm   Standard scope of supply   Diesel generating set include: Diesel engine (with all standard accessories, filters and electric system) Radiator (with water tank and fan) Alternator Control panel Steel base frame All above parts are assembled into a whole   Other standard parts:   Effective muffle Exhaust elbow Bellows Storage battery and connection wires Shock absorber Technical documents   Optional equipments   Auxiliary device for starting at low temperature ATS(Automatic transfer switch) Genset combined device Water fore warmer Moisture eliminator of alternator Various kind of monitoring system Remote monitoring system Fuel tank for daily use or base frame fuel tank   Other kinds of special equipment   Soundproof canopy Mobile Diesel Generating Set Container Generating Set Power Station for refrigerated container generating set Gantry Diesel Generating Set   Note: 1.  The above data is only for the customer’s reference. 2.  Those above data are for 50HZ, 1500RPM, 400V/230V, 3 PHASE 4 WIRES. Please contact with us if you need 60HZ specification or else. 3.  We reserve the rights to amend the technical specification here without prior notice.
