300kw to 1000kw Mitsubishi Marine Generator Set

Specifications Mitsubishi Marine Generator Set

1 Mitsubishi engine

2 Deepsea control plane

3 High efficiency and reliability

4.CCS

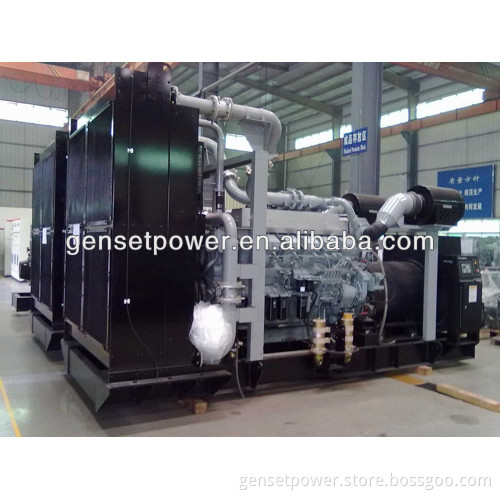

     300kw to 1000kw Mitsubishi Marine Generator Set       Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRM413	300	375	330	413	S6B3-PTA	≤211	6	14.6	135*170
GNRM500	360	450	400	500	S6A3-PTA	≤213	6	18.6	150*175
GNRM550	400	500	440	550	S6A3-PTAA	≤213	6	18.6	150*175
GNRM650	480	600	520	650	S6R-PTA	≤206	6	24.5	170*180
GNRM750	520	650	600	750	S6R2-PTA	≤205	6	30	170*220
GNRM825	600	750	660	825	S6R2-PTAA	≤211	6	30	170*220
GNRM908	660	825	726	908	S12A2-PTA	≤214	12	33.9	150*160
GNRM1125	800	1000	900	1125	S12H-PTA	≤206	12	37.1	150*175
GNRM1375	1000	1125	1100	1375	S12R-PTA	≤205	12	49	170*180
GNRM1500	1100	1375	1200	1500	S12R-PTA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S12R-PTAA2	≤205	12	49	170*180
GNRM1650	1200	1500	1320	1650	S16R-PTA	≤207	16	65.4	170*180

    The specification of engine: 1)engine model: mitsubishi 2)engine part :water tower,fan,fuel tank 3)governor system:electrical or mechanical governor 4)aspiration mode:natural, turbocharged 5)start method: 12V/24V DC electric starting 6)low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions   The specification of alternator: 1)alternator model: stamford, Leroy, Marathon 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4) Protection class :IP21-23 5)power factor:3 phase 4 wire 6)Motor: bronze brushless 7) rated voltage:  220V/380V, 230V/400V, 240V/415V .  8)rate frequency:50/60 HZ   control panel 1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current 6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button      Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
