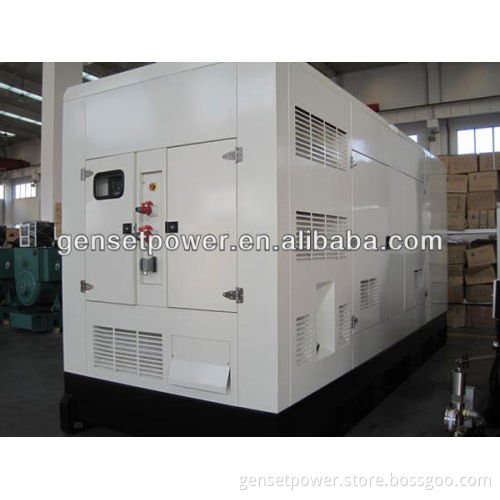

100kw to 700kw China Wudong Diesel Generator Set

Specifications Wudong Diesel Generator Set

1 Wudong Engine & Stamford

2 Smartgen control planel

3 High efficiency and reliability

4.CE

   100kw to 700kw China Wudong Diesel Generator Set    Wuxi power series generator set is chosen Wuxi power engineering Co., LTD. "Wan Di" Brand diesel engine. Wuxi power engineering Co., LTD,is the development and production of internal combustion engine and the turbocharger of backbone enterprises, It is also a high-tech enterprises in Jiangsu Province CAD engineering demonstration enterprises and the top enterprises in Wuxi city. Predecessor was founded in 1956, public-private partnerships, Wuxi power factory. In 2006 by the Chinese market monitoring center China machinery industry 500 strong and the internal combustion engine manufacturing enterprise 50, 2007 by China quality association assessment for the product quality reputation AAAA grade.   parameters of Wudong Diesel Generator set

Model	Power			Diesel engine						mcapacity (L)	Fuel consumption (g/kwh)	Weight (kg)	Size (mm)
	KVA	KW	A	Model	Power (KW)	Cylinder	Bore (mm)	Stoke (mm)	displacemen (L)
GNRW100	125	100	180	WD129D11	121	6L	135	150	12.9	30	213	1980	2700×900 ×1500
GNRW120	150	120	216	WD150D15	155	6L	140	160	14.8	30	213	2040	2700×900 ×1550
GNRW150	187.5	150	270	WD129TD16	178	6L	135	150	12.9	30	213	2140	2840×960 ×1850
GNRW200	250	200	360	WD129TAD19	210	6L	135	150	12.9	30	213	2360	2920×1160 ×1850
GNRW200	250	200	360	WD129TAD23L	259	6L	135	150	12.9	30	213	2400	3000×1160 ×1800
GNRW250	312.5	250	451	WD129TAD25L	284	6L	135	150	12.9	30	213	2600	3000×1160 ×1800
GNRW280	350	280	505	WD129TAD28L	308	6L	135	150	12.9	30	224	2700	3140×1160 ×1800
GNRW300	375	300	541	WD145TAD30L	340	6L	138	150	13.5	58	224	2900	3140×1160 ×1800
GNRW320	400	320	577	WD145TAD33L	373	6L	138	160	14.4	58	228	3000	3140×1160 ×1800
GNRW360	450	360	649	WD269TAD38	420	12V	138	150	26.9	58	213	3800	3500×1615 ×2200
GNRW400	500	400	7211	WD269TAD41	460	12V	138	150	26.9	58	213	4000	3500×1615 ×2200
GNRW450	562.5	450	811	WD269TAD45	512	12V	135	150	26.9	58	217	4100	3500×1615 ×2200
GNRW500	625	500	902	WD269TAD50	556	12V	135	150	26.9	58	213	4300	3500×1615 ×2200
GNRW550	687.5	550	992	WD269TAD56	616	12V	138	150	26.9	58	213	4600	3600×1615 ×2200
GNRW600	750	600	1082	WD287TAD58	638	12V	138	160	28.7	58	213	4800	3600×1615 ×2200
GNRW600	750	600	1082	WD287TAD61L	680	12V	138	160	28.7	58	217	5000	3600×1615 ×2200
GNRW700	875	700	1262	WD305TAD68	750	12V	140	165	30.5	60	217	6000	3700×1650 ×2200

    The specification of engine: 1)engine model: Wudong Enginei 2)engine part :water tower,fan,fuel tank 3)governor system:electrical or mechanical governor 4)aspiration mode:natural, turbocharged 5)start method: 12V/24V DC electric starting 6)low fuel cnsumption,low noise,small volume,light weight 7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions   The specification of alternator: 1)alternator model: stamford, Leroy, Marathon 2)regulator: AVR automatic voltage regulating 3)insulation degree: H degree 4) Protection class :IP21-23 5)power factor:3 phase 4 wire 6)Motor: bronze brushless 7) rated voltage:  220V/380V, 230V/400V, 240V/415V .  8)rate frequency:50/60 HZ   control panel 1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current 6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button      Accessories 1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document. 2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
