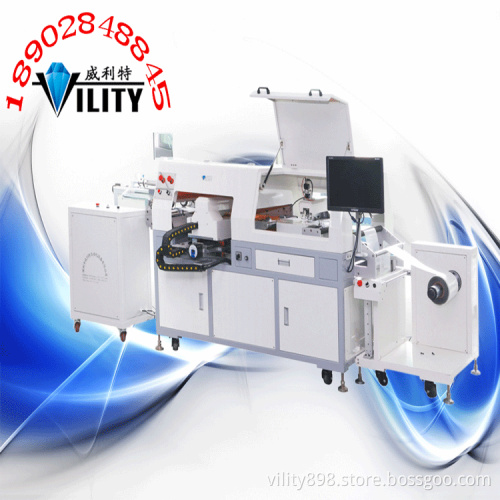

Double-spindle Automatic Hole Punching Machine with dust device
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 25 Days
- Transportation:
- Ocean
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 5sets/month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
Product Description
Product Description
Characteristics
Dual Movement Position Systems enable to control workpiece and spindle simultaneously.Speed up process and increase efficiency.
Apply to thin and thick PCB and Rigid-Flex PCB.No burr, no reaming.
The exclusive dual movement position system:
1. High-speed X-Y table movement to catch targets by CCD position.
2. High-speed U-V table movement to drill holes by rapid rotated spindle.
Target identification + Hole drill < 1 sec.
Identify any kind of targets by construction lights without concerning about color, bad print or unformed targets.
Simple and Easy edition by teaching and reading files.
Memorize over 100 sets of file saved by HD without losing.
Noiseless and no vibration.
Specs
Process Range:600mm*500mm
Process Accuracy: ±20um
Process Speed: 1.1 sec/hole (At pitch 10mm of X direction traveling)
Process Thickness: 0.1-1.6mm (CEM, FR4 and FPC)
Suitable Material: PCB, Plastic Nameplate, Film and Mobile Phone Panel
Drill Size: 1.4-3.175mm
Target Size: Ø1-5mm Circle Shut Graph
Spindle: Either 30000rpm or 48000rpm Electric Water Cooled Spindle
Info Storage: Hard Disc Storage
Memory Capacity: Over 100 Sets
Threshold Level: 256 Levels
Range of View: 8*6mm
Illumination: Three-color LED Reflecting Light + White LED Transparent Light
Controller: Window XP system + IPC
Counter Holes: Accumulative Total and Processed Holes Each Day
Editing Function: Add, Delete, Copy, Rotate, Mirror Reflex and Center Correct
Measure Function: Center Deviation Measure and Plus Bar Chart
On-line Function: Machines On-line, Files Transmission (Optional)
Drive Way: X-Y Axis by AC Server Motor, Z Axis by Air Driver, U-V Axis by Stepping Motor
Power: 1 Ø AC220V 1KVA 50/60Hz
Environment: Temp 5-30ºC (20-25ºC would be best); Humidity 40-60%; Altitude under 1000m
Machine Size: 160(W)*170(D)*145(H) cm; Cover Raise: 195cm
Machine Weight:1500kgs
Air Press Supply: 5HP above Dry and Clean Air
