4 Core 2 Holes Cable Ports Termination Box Fiber 0.25 kg 5
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

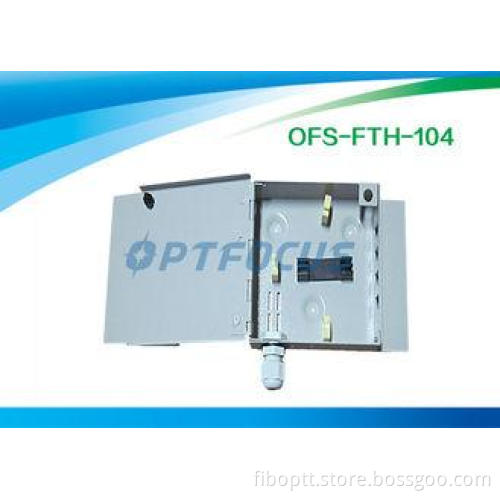

4 Core 2 Holes Cable Ports Termination Box Fiber 0.25 kg Φ5 Φ10 Wall Type
OFS-FTH-104
| Application: |
Applicable to FTTH project, fixed and welding with pigtails of drop cable of residential building and villas, etc
- Design of hinge and convenient press-pull button lock
- Small size, light weight, pleasing in appearance
- Can be installed on the wall with mechanical protection function
|
With max fiber capacity 4-16 cores, 4-16 adapter output, available for the installation of FC,SC,ST,LC adaptors
|
Items |
OFS-FTH-104 |
OFS-FTH-108 |
OFS-FTH-116 |
|
Dimension (mm) |
H140×W130×D36 |
H200×W165×D40 |
H245×W200×D60 |
|
Weight(Kg) |
0.4 |
0.6 |
1 |
|
Cable diameter (mm) |
Φ5~Φ10 |
Φ5~Φ10 |
Φ5~Φ10 |
|
Description |
Type |
Quantity |
|
splice protective sleeves |
60mm |
available according to the fiber cores |
|
Cable ties |
60mm |
10×splice tray |
|
Installation nail |
nail |
3pcs |
|
Cable entry ports |
1hole |
2holes |
3holes |
|
|
Max capacity |
4cores |
8cores |
16cores |
|
Model |
Inner carton dimension (mm) |
Inner carton weight(kg) |
Outer carton dimension (mm) |
Outer carton weight(kg) |
No of unit per outer carton (pcs) |
|
OFS-FTH--104 |
150×145×55 |
0.4 |
730×320×290 |
22 |
50 |
|
OFS-FTH--108 |
210×185×55 |
0.6 |
750×435×290 |
26 |
40 |
|
OFS-FTH--116 |
255×235×75 |
1 |
530×480×390 |
22 |
20 |
