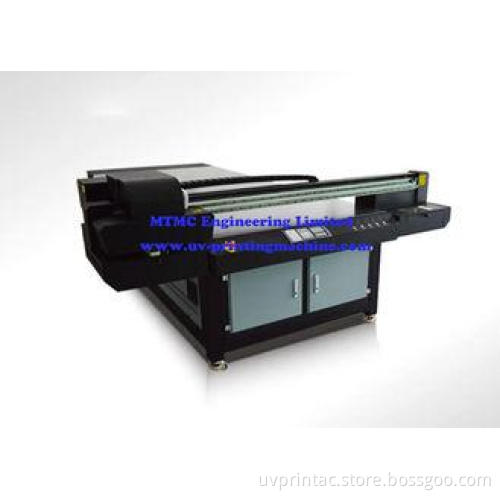

Flatbed UV Digital Printer Machine Four Colour Printing Machine
Description:
1) Mute guide rail lead screw.
The noise are controlled under 40 DB while printer working.
2) All steel under frame structure.
Processed with welding tempering treatment and aging treatment, make sure under frame and platform are not be deformed with time, highly extended printer lifespan and its accuracy.
3) Automatic print head height adjustment device for media, it enables print head auto-adjust with media thickness under 100mm, deliver a smooth printing even with various media.
4) Anti-collision system for print head
With our anti-collision system, The print head is easier to adjust for different substrate, avoid any chance to damage print head under any misoperation.
5) Use double lead screw driving system, guarantee printing resolution and quality, longer printer lifespan.
Applications:
|
Advertisement |
art craft signs and boards, photos, art works, glass paint |
|
House decorations |
kitchen cabinet door, closet door, bathroom cabinet and other furniture, background wall, glass door |
Competitive Advantage:
1) Automatic lifting ink stack, making printer more efficient and providing better protection for print head.
2) User-friendly designed, easier to operate.
3) Utilize Germany-imported drag chain on X axis, ideal for protection of cable and tubes under high speed motion.
4) Smart pressure ink supply system.
Specifications:
|
Model Type |
MC - F1325G |
|
|
Printing Size |
1300mm x 2500mm |
|
|
Printing Head |
Ricoh industrial print head |
|
|
Printing Color |
CMYK 4 color or CMYK Lc Lm 6 color + white |
|
|
Media Thickness |
1 - 100mm |
|
|
Media Handling |
Vacuum platform |
|
|
Printing Precision |
300 x 300dpi, 300 x 600dpi , 600 x 600, 600 x 900 dpi, 600 x 1200 dpi, 900 x 1200 dpi |
|
|
Lifting Function |
Intelligent ink carriage lifting, electronic automatic / manual operation intelligent induction to inspect and adjust height |
|
|
File format |
TIFF(RGB & CMYK), BMP, PDF, EPS, JPEG,etc. |
|
|
Ink Type |
UV curing inks |
|
|
Print head quantity |
2 + 1, 3 + 1 |
|
|
Printing Speed |
Draft mode |
45 m2 / h |
|
Standard mode |
36 m2 /h |
|
|
Quality mode |
24 m2 / h |
|
| High quality mode | 17 m2 / h | |
|
Power Supply |
AC110, 220V, 50 - 60HZ, P1.5kw |
|
|
Printing Interface |
High-speed USD2.0 transmission interface |
|
|
Driving software |
Microsoft Windows 98 / Me / 2000 / XP / Win7 / Win10 |
|
|
Working environment |
Temperature: 20 - 30 Celsius degree, Humidity: 40 - 70% |
|
|
Printer Size |
3140 mm x 2460 mm x 1330 mm |
|
|
Packaging size |
3350 mm x 2660 mm x 1680 mm |
|
|
Printer weight |
750 kg |
|
