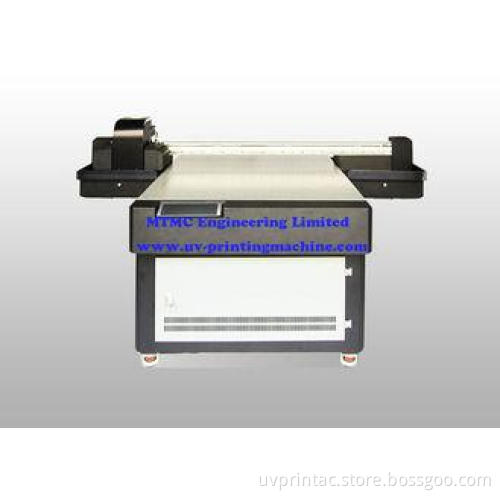

Flatbed High Precision 3D Digital Ultraviolet Printer Multicolor
Description:
1) Print head with 3.5PL nozzle diameter, print brighter and richer color.
2) Dual print heads available in 4 x 4 colors, fully meet industrial production needs.
3) Utilize imported high quality super mute linear guide rails, high stability and precision.
4) Apply intelligent print head carriage lifting, auto-complete lifting on the basis of substrate, stable lifting, high precision, controllable and high speed.
5) Use continuous ink supply system, greatly reduce printing cost and increase profitability.
6) Perfect combination of special ink elements and professional RIP software, maintain outdoor printing works long duration, clear and bright.
7) Aluminum alloy platform made by imported equipment, has spectacular accuracy and outstanding durability.
Applications:
Industial works printing |
Barrette, U shield, Glass frame, watch belt, Cigarette case, lighter, various business gifts, phone case, name tag, stationery, toys |
Competitive Advantage:
1) Printing speed can be adjusted by printing resolution.
2) Features in medium format printing, high speed with double print heads, high resolution and stability, low maintenance cost and adaptable to various environments.
3) High productivity will save human cost greatly.
4) Helps you to gain an advantageous position in market with low cost of consumable including print head and ink.
Specifications:
Model Type |
MC - TS - 1015E |
|
Printing Size |
1000mm x 1500mm |
|
Printing Head |
Epson DX5 |
|
Printing Color |
High precision intelligent double IV 4 colors / 4 colors (CMYK), 8 colors / double 8 colors, (The white ink optional) |
|
Media Thickness |
1-100mm |
|
Media Handling |
Vacuuming media fixation platform |
|
Printing Precision |
360 x 360dpi, 360 x 720dpi, 360 x 1080dpi, 720 x 720dpi, 720 x 1440 |
|
Lifting Function |
Intelligent ink carriage lifting, electronic automatic/manual operation intelligent induction to inspect and adjust height |
|
File format |
TIFF(RGB & CMYK), BMP, PDF, EPS, JPEG,etc. |
|
Ink Type |
UV curable ink |
|
Print head quantity |
2 |
|
Printing Speed |
4 pass |
13 m2 / h |
6 pass |
10 m2 / h |
|
8 pass |
7.5 m2 / h |
|
Power Supply |
AC110, 220V, 50 - 60HZ |
|
Printing Interface |
High-speed USD2.0 transmission interface |
|
Driving software |
Microsoft Windows 98 / Me / 2000 / XP / Win7 / Win10 |
|
Working environment |
Temperature: 20 - 30 Celsius degree, Humidity: 40 - 70% |
|
Printer Size |
2000mm x 2120mm x 1200mm |
|
Packaging size |
2180mm x 2260mm x 1380mm |
|
Printer weight |
450 kg |
