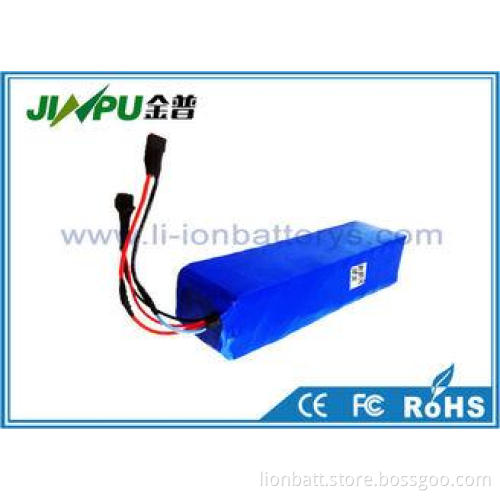

12V Li Ion Rechargeable Battery Pack 12ah 3S5P 144Wh Rate 1 year Warranty
Advanatges:
a. Extremely safe and stable chemistry: BMS built inside to balance and protect the battery.
b. Long life-cycle: Can be circularly used, more than 800 times recycles.
c. Environment friendly: Clean and Green energy poses no pollution on our environment.
d. Lighter weight, with the best power-to-weight ratio.
e. Good performance at high temperature and high temperature resistance
f. Low self-discharge rate, less than 3% monthly.
g. No memory effects and highly efficient charge.
Specification:
|
Battery Model |
JP-EM003 |
|
Nominal Capacity (AH) |
12Ah |
|
Nominal Voltage (V) |
12V |
|
Rate |
144Wh |
|
Cell Specification |
Samsung 18650 26FM |
|
Cell Combination |
4-paralle 3-series |
|
Cell Size |
18650 cells |
|
Cell Quantity (parallel*series) |
12pcs |
|
Discharge Cutoff Voltage (V) |
9V |
|
Charge Cutoff Voltage (V) |
12.6V |
|
Rated Discharge Current (A) |
2A |
|
Continuous Discharge Current (A) |
10-20A |
|
Burst Discharge Current (A) |
40A |
|
Maximum Continuous Charge Current (A) |
4A |
|
Charge Mode |
CC/CV |
|
Standard Charge Current (A) |
2A |
|
Charge Temperature Range |
0 - 45 ℃ |
|
Discharge Temperature Range |
-20 - 60 ℃ |
|
Battery Size |
Customized |
|
Battery Net Weight |
2kg |
Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.
Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
Applications:
This battery for electric bikes, scooters, hybrid electric vehicles (HEVs) and electric vehicles (EVs), but also for electricity, communication, mines, solar and wind electricity generation applications, wind/solar energy storage system, and other multi-power systems in the military use.
Competitive Advantage:
10 years of manufacturing experience in li-ion battery pack.
Great knowledge of the market by Hi-Tech
Ability for customers to order and receive products at a distance in a short time
After-sales service of high level
High inventory turnover: more new products and more competitive prices
