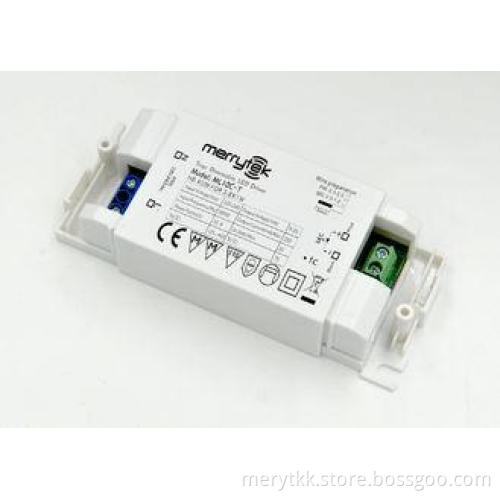

ML10C-T 10w 320mA constant current Triac dimmable led driver
Description
1, Match leading & trailing edge dimmer,flicker-free design
2. Well match dimmers: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00
3, Output voltage 21-33Vdc,load 7-11pcs LEDs
4. Applied for ceiling lamp,down light,COB
5. Flickering free @ full laod
6, Protection: Short circuit / Over voltage / Over temperature.
7, Dimming range: 10%-100%
8, One dimmer can control a group of loads
9, Life time 50,000 hours
Mechanical Specification
Specifications
|
Input |
Input voltage |
220-240Vac, 50/60Hz |
|
Power factor (PF) |
≥0.9(@ 240Vac input, full load and without dimmer) |
|
|
Efficiency |
≥80%(@ 240Vac input, full load and without dimmer) |
|
|
No-load power |
≤0.5W |
|
|
Output |
Output Voltage |
21-33V DC |
|
Output Current |
320mA |
|
|
accuracy |
±5% |
|
|
Rated power |
10W Max. |
|
|
Dimming |
Dimming mode |
Leading & Trailing edge dimming |
|
Dimming range |
10%-100% |
|
|
Environment |
Working temperature |
-25℃~50℃ |
|
Storage temperature |
-40℃~80℃ |
|
|
Safety and EMC |
Insulation class |
Class II, SELV |
|
Withstand voltage |
Input-Output: 3.7kVac/5mA/1min |
|
|
EMC |
Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 |
|
|
Safety |
Compliance to EN61347-1, EN61347-2-13 |
|
|
Protection |
Short circuit |
Protection mode: Auto recovery |
|
Over temperature |
Protection mode: Auto recovery |
|
|
Others |
Dimension |
92 x 55 x 17mm |
|
Enclosure |
Plastic, white |
|
|
IP rating |
IP20 |
|
|
Connection |
Input: 2-hole screw terminal(L, N) Output: 2 screw terminal(LED +, LED -) |
|
|
Life time |
50,000h |
|
|
Certification |
CE |
Application
For ceiling lamp,down light,COB
Wire diagram
