12V 5A AC Adapter 60W LCD Monitor LED Strip Driver
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT, CIP
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |

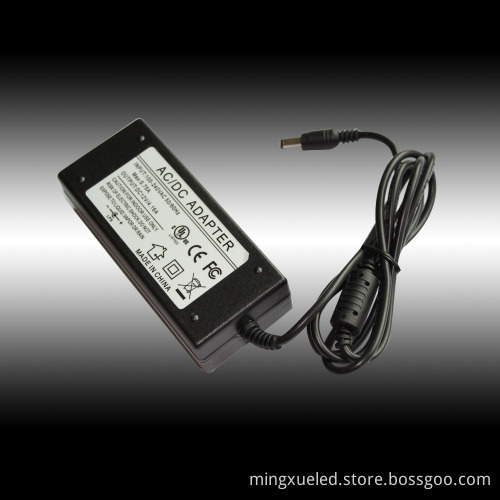

12V 5A AC Adapter 60W for LED Strips, LCD Monitor, CCTV Camera, Non waterproof adapter. Led Strip Driver is a small portable electronic equipment and electrical and electronic power conversion equipment supply, generally by the shell, power transformer and rectifier circuit, its output can be divided into AC output type and DC output type. connections can be divided by the Wall and desktop.
DC12V 60w led strip adapter:
Pictures:
|
Product Electric Parameters |
||||
|
Input specification |
Input voltage |
AC100V---240V |
||
|
|
Input frequency |
50-60Hz |
||
|
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Output voltage can be adjusted |
±10% |
||
|
|
Start-up time |
<1S(input230V Io=100%) |
||
|
|
keep time |
>20mS (input230V,Io=100%) |
||
|
|
Voltage regulation |
(Full load) <0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
||
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
||
|
|
Input---ground |
1500VAC/1min |
||
|
|
Input---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, UL60950-1,EN60950-1 standards. |
|||
|
E M C standards |
According with GB9254, EN55022 class A EN61347-2-13:2008 standards |
|||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
||
|
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||
|
|
height above sea level |
<2000M |
||
|
Cooling method |
Cooling method |
Natural cooling air convection |
||
|
Product Type Table |
||||
|
Product model |
output specification |
ripple, noise |
efficiency |
|
|
S1205000 |
12V |
5A |
100mV |
85% |
