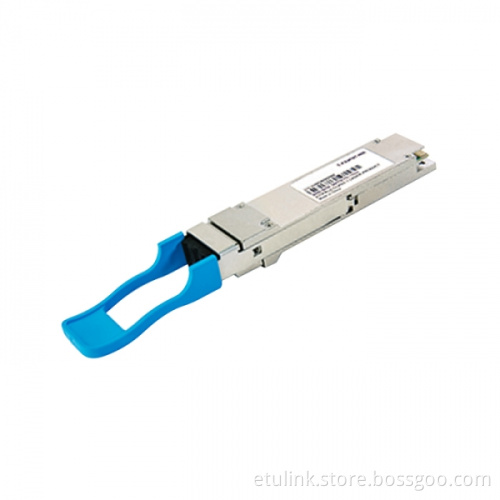

200G QSFP-DD SR8 Optical Transceiver

200G QSFP-DD SR8 Optical Transceiver

Item NO.: EQD8520X-3MCD01

Date rate: 200G

Wavelength: 850nm

Distance: 100M

Connector: 24core MPO

DDM:YES

Place of origin: Made in China

Shipping Port: ShenZhen

Package type: Individual package or 10pc/package

Description

The 200G QSFP-DD SR8 optical module is a high-performance optical module for short-distance multi-lane data communication and interconnection applications. It integrates 8 data channels in each direction with a bandwidth of 8x25.78125Gbps. Each channel runs at a rate of 25.78Gbps, and transmits 70m when used with OM3 fiber or 100m when used with OM4 fiber. The wavelength of these modules is 850nm multimode fiber optic system.

Features

★8 channel full duplex transceiver module

★The transmission data rate of the first channel is up to 26Gbps

★8 channel 850nm VCSEL array

★8-channel PIN photodetector array

★CDR circuit in the receiving end and transmitting channel

★Support CDR

★Low power consumption <4W

★Hot-pluggable QSFP-DD package

★The maximum link length of OM3 multimode fiber (MMF) is 70m, and the transmission of OM4 multimode fiber is 100m

★24-Core MPO connector

★Built-in digital diagnosis function

★Operating case temperature 0°C + 70°C

★3.3V power supply

★Rohs 6 compatible (lead-free)

Applications

1.Gigabit Ethernet/Fiber Channel/Switch to Switch interface

2.Switched backplane applications/Router/Server interface

3.Other optical transmission systems
