Polyamide-imide / PAI sheets / PAI sheets
  • Polyamide-imide / PAI sheets / PAI sheets
  • Polyamide-imide / PAI sheets / PAI sheets
  • Polyamide-imide / PAI sheets / PAI sheets
  • Polyamide-imide / PAI sheets / PAI sheets
Polyamide-imide / PAI sheets / PAI sheets
Polyamide-imide / PAI sheets / PAI sheets
Polyamide-imide / PAI sheets / PAI sheets
Polyamide-imide / PAI sheets / PAI sheets

Polyamide-imide / PAI sheets / PAI sheets

Payment Type:
T/T, D/P, Paypal, Money Gram
Incoterm:
FOB, CFR, CIF, EXW, FCA
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
10 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen China
Payment Type: T/T,D/P,Paypal,Money Gram
Incoterm: FOB,CFR,CIF,EXW,FCA
Certificate: SGS,ISO9001
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

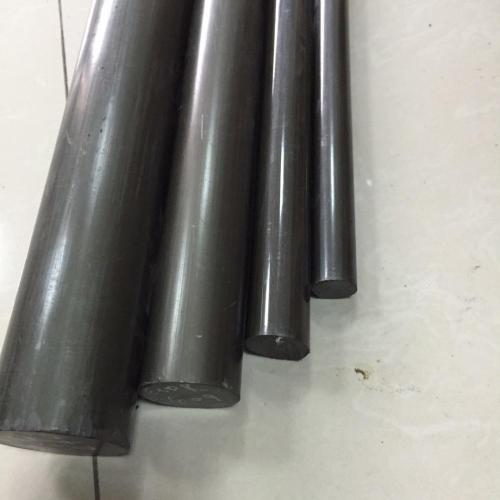

Polyamide-imide / PAI sheets

Polyamideimides (PAI) has a very high mechanical strength and hardness at low temperatures and under very high. Polyamideimides (PAI) have stability temperature of the mold and a glass transition temperature (+ 280 ° C).

The PAI polymer sheets will not change its properties even at the highest possible operating temperature, and the Polyamideimide parts will work flawlessly even under excessive heat.

Polyamide-imide / PAI is used for manufacturing of:



Application:


PAI products are suitable for many applications such as gears, rollers, plasma chamber hardware, and contact holders. In addition, Torlon can be processed into chip holders and sockets, sliding strips in aerospace, insulation bodies in electrical engineering, slide bushings in hydraulic systems, and sipes in compressors.




MECHANICAL PROPERTIES VALUE UNIT PARAMETER NORM
Impact strength (Charpy) 81 kJ/m2 max. 7,5J DIN EN ISO 179-1eU
Shore hardness 85 - D scale DIN EN ISO 868
Compression strength 12/32/90 MPa 1% / 2% / 5% EN ISO 604
Modulus of elasticity
(tensile test)
3600 MPa 1 mm/min DIN EN ISO 527-2
Tensile strength at break 122 MPa 5mm/min DIN EN ISO 527-2
Modulus of elasticity
(flexural test)
3600 MPa 2mm/min, 10 N DIN EN ISO 178
Elongation at break 8 % 5mm/min DIN EN ISO 527-2
Flexural strength 173 MPa 2mm/min, 10 N DIN EN ISO 178
Ball indentation hardness 221 MPa   ISO 2039-1



  If other plastic material you as below, you can also contact us.
POM Sheet;POM Rod;
PTFE Sheet;PTFE Rod;PTFE Cloth
3240 Epoxy Glass Sheet;FR4 Sheet
PA6 Sheet;PA6 Rod;MC Nylon Sheet;MC Nylon Rod
PVC Sheet;PVC Rod;PVC Rod
ABS Sheet;ABS Rod
PEEK;Mica;PE,PP;PU
