TF LED Full Color Video Control Card Asynchronous

Model

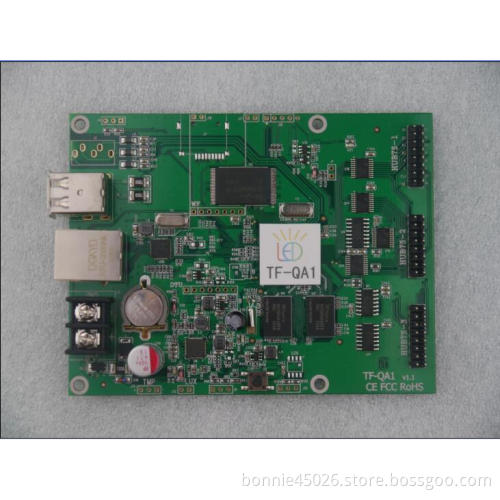

TF-QA1 any partition full-color video LED Control Card

State

Batch supply

Function introduction

Any partition, multi-zone any overlay, video decoding, background animations, support cross screen

Communication port

Gigabit Ethernet + U disk combo

Network function:

Card Default IP: 192.168.1.252, support smart card IP auto-linking

USB function:

USB program update, USB brightness adjustment, USB panel setup. U disk directly play program

Pixel

Full color: 512x48 384x96(Only high 96 points 1/16 scanning modules)

Ports

3 HUB75 port

Scanning mode

support  1/16,1/8,1/4,1/2 and Static full-color scanning module, Support Smart Set any plot points

Storage

4G (4096M bytes)

Program number

Supports up to 200 programs, each program supports 16 regional play simultaneously. Each supports up to 200 graphic information

Display

Rain, fountains, scrolls, etc. 45 animation effects.

Border

 Support a variety of Colorful border effect, support picture custom border

Information Type

Video, hypertext, pictures, animation, countdown, is timing, temperature, humidity, clock

Play Mode

Program host turns playing, long playback order, support segment by date, time, week broadcast regularly

Time Display

Dial clock, word clock, time with seconds, adjustable font size, you can set the time zone. Support multiple time zones control display

Communication method

Network communication port, support network automatically finds 10M / 100M / 1000M adaptive, support U disk update program

Brightness

16 level Brightness, support for manual brighter, supports six time timing adjustment brightness automatically according to ambient brightness light-sensitive

Screen switch

Manual switch screen, supports four time periods timer switch screen

Test button

On-board test button, you can switch to test mode

Extension function:

Temperature sensor,Temperature&humidity sensor.

Electrical parameters

+5V DC(4.5V~5.5V),Power consumption<3W

Working temperature

-30ºC~70ºC

Size

119mm*92mm
