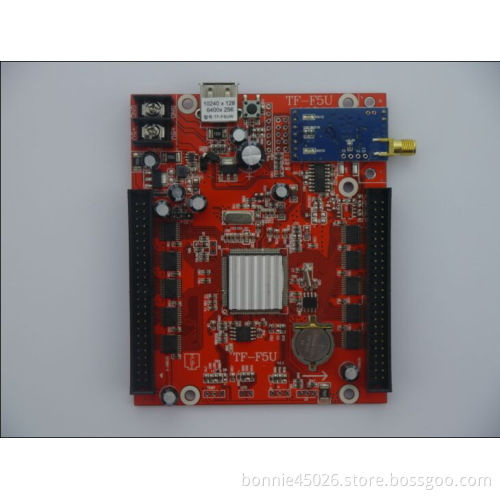

TF-F6uw Wireless Control Card Mobile WiFi Card

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

TF-F6UW

Model State	TF-F6UW Batch supply
Function introduction	More arbitrary division,dazzle colour border area,WIFI communication
Usage	indoor/outdoor
Pixel	Single colour 10240x128;6400x256 Double colour 5120x128;3200x256
USB function:	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Ports	two group 50 pin general output interface,support various common interface connecting plate
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	8MB
Program number	Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.(Quantity in storage space under the premise of memory)
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Communication way	Stand-alone,LAN,Intenet remote cluster management
Brightness	Level 16 highlighted,support manual
screen switch	manual
Test buttons	Test buttons on-board,can switch over to test mode.
Extension function:	Temperature sensor/Temperature&humidity sensor(Diagram for connection).
Electrical parameters	+5V DC(5.0V~6V),Power consumption<3W
Working temperature	-30ºC~70ºC
Size	110mm*90mm
