10W G24 PL Tube Fluorescent Tube Replacement

G24 10W LED The lamp with modern and simple design, smooth surface well sealed to prevent mist and moisture, High Lumen. Import international first-class led chip--Samsung which brings high power efficiency, electricity savings and low light failure. G24 10W LED can to replace the 26W CFL.

10W G24 PL Tube Fluorescent Tube Replacement

1. Quick Details of 10W G24 PL Tube:

Brand name: KEHEI                                             Model No: PL-18-10W
Item Type: 10W G24 PL tube                               Power: 10W
Light Source: Samsung 5630 from Korea               Base type: G24D/Q
Input Votage: AC110V/220V                                Working Temperature:  -40-60℃
Warranty: 2 YEARS                                            Certifications: CE,ROHS

2. Trade terms of 10W G24 PL Tube:
1. Payment term: T/T in advance, Western Union, PayPal, L/C.
2. EXW Shenzhen
3. Production time: 3-15days
4. MOQ: 20pcs

3. Specifications of 10W G24 PL Tube:

Model No: PL-18-10W
Light Source: Samsung 5630 from Korea
Power: 10W
Base type: G24D/Q
Working Voltage: AC110V/220V
Lumens: WW:900lm/CW:950lm
Advantage:
(1)Pure Aluminum heat sink.(40% than die-casting Aluminum)
(2)PC Spread cover mixes the light gently,light output can reach up to 88%.
(3)Internal Driver with CE certificate,not need ballest anymore,but for replacement can work with magnetic ballast
(4)Patent design can rotate at 350 Degree.
(5)10W G24 PL tube to replace the 26W CFL
Color Temperature (CCT): 2800-3200K, 3800-4200K, 5750-6150K
Beam Angle: 160°
Ra: >80
Power Factory(PF): 0.8
Light Efficiency: 90-95lm/W
Gross Weight: 138G
Dimension: L171*W 34.4mm
Shell material: Pure aluminum material 6063 heat sink
Cover material: PC cover

4. Applications of 10W G24 PL Tube:
1. Landscape Accent/10W G24 PL tube
2. Architectural Lighting
3. Display Case Accent
4. Artwork lighting
5. Mood Lighting/General Lighting
6. Amusement Park Accent
7. Commercial Lighting, house lighting
8. Hotels

5. Package & Delivery of 10W G24 PL Tube:
Package Detailes: 50 pcs/ctn, Meas:L400*W200*H170mm G.W:9kgs
Delivery Time: 3-15days

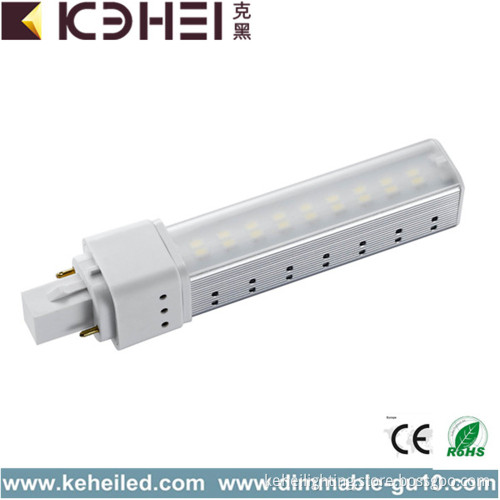

6. 10W G24 PL tube Photo:

7. Projects of LED G24 tube:

8. Factory & Equipments Photo:

	Development area Kehei meets your requirements   Kehei Lighting is always busy with creating and developing new products  in the area of  LED-Technology. We can ensure you that we can meet your needs. Everything is possible!  If you want,PDF of integrating sphere Data&Photometric Data,IES file are  available
	Manufacture Eye for details   We have our own CNC to produce LED heat sinkwith pure aluminum material. Soldering, make sure all product`s quality and fast delivery.   Our assembly trained and old aging testing can be qualified to  manufacture your good LED-products.
	Test Center Only the best quality   Kehei Lighting is committed to deliver quality products.  To make sure that all the Lighting products meet the requirements, All Kehei Lighting Lights are tested for duration of at least 24 hours.  Because Kehei Lighting has his own indoor test Center, testing procedures can be done strictly and fast.    In this way we can not only ensureyou the best quality, but also a fast delivery!

9.CE,RoHs approval:
