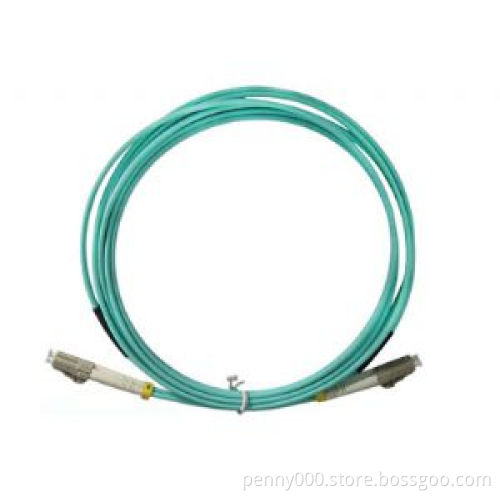

LC OM3 duplex fiber patch cord
- Payment Type:
- T/T, Paypal, Western Union
- Min. Order:
- 10 Bag/Bags
- Min. Order:
- 10 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 2000 pcs/day |
| Payment Type: | T/T,Paypal,Western Union |
| Certificate: | ISO9001 |
| Transportation: | Air |
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Flyin Optronics offer kinds of fiber patch cord, such as FC, SC, ST, LC, MU, MTRJ, MPO, E2000 series, available for PC/UPC/APC version, provide with SM, MM, OM3 fiber cable, simplex and duplex types, 0.9mm, 2.0mm, 3.0mm cable diameter for choose, different fiber length by customers request.
Features
l High dense spaces
l Low insertion loss, high return loss
l Excellent mechanical endurance
l High credibility and stability
l Good in repeatability and exchangeability
l 100% Insertion, Return Loss, End Face and Interference inspection
Applications
l Telecommunication
l CATV, FTTH, LAN
l Fiber oiptic sensors
l Optical transmission system
l Test equipment
Performance Specifications
Parameter
Unit
FC, SC, LC
ST, MU
MTRJ, MPO
E2000
SM
MM
SM
MM
SM
MM
SM
PC
UPC
APC
PC
PC
UPC
PC
PC
UPC
PC
PC
APC
Insertion Loss
dB
≤0.3
≤0.2
≤0.3
≤0.2
≤0.3
≤0.2
≤0.2
≤0.3
≤0.2
≤0.2
≤0.3
≤0.3
Return Loss
dB
≥45
≥50
≥60
≥30
≥45
≥50
≥30
≥45
≥50
≥35
≥55
≥75
Repeatability
dB
≤0.1
Durability
dB
≤0.2dB typical change, 1000 matings
Operating temperature
℃
-20 ~ +75
Storage temperature
℃
-40 ~ +85
Ordering Information
Connector 1
Connector 2
Fiber Core
Cable Diameter
Fiber Type
Polishing
Cable Jacket
Cable Color
Fiber Length
LC
SC
FC
ST
D4
MU
DIN
SMA
MPO
MTRJ
E2000
-
LC
SC
FC
ST
D4
MU
DIN
SMA
MPO
MTRJ
E2000
-
Simplex
Duplex
0.9mm
2.0mm
3.0mm
SM:9/125um
MM:50/125um MM:62.5/125um
OM3
PC
UPC
APC
PVC
LSZH
Yellow
Orange
Aqua
others
1M
2M
3M
-
10M
20M
30M
-
