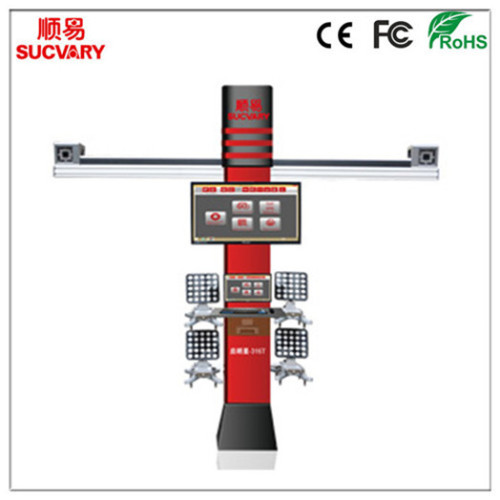

High Quality Cloud 3D Wheel Aligner
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Yantian, Shenzhen, Hongkong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300/month |
| Supply Ability: | 300/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Yantian,Shenzhen,Hongkong |
High quality cloud 3D wheel aligner is quite popular now in China because high quality cloud 3D wheel aligner can save more space with the rise of premium. High Quality cloud 3D wheel aligner does not need to have a beam to keep balance because of the middle camera. High quality cloud 3D wheel aligner makes two sensors share data easily.
Advantages of High Quality Cloud 3D Wheel Aligner:
1. 3D Wheel Aligner With Hand-Held Tablet can save space with different installation patterns.
2. Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so Cloud 3D wheel alignment can measure almost all kinds of vehicles.
3. Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Supported by powerful cloud service, 3D Wheel Alignment With Tablet can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Measurement range is wide, and 3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of High Quality Cloud 3D Wheel Aligner
|
References |
Accuracy |
Measurement range |
|
Camber |
±0.01° |
±8° |
|
Caster |
±0.03° |
±19° |
|
K.P.I |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear Wheel Thrust Angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track width difference |
±0.02° |
±2° |
|
Front Setback |
±0.02° |
±2° |
|
Rear Setback |
±0.02° |
±2° |
|
Track width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
High Quality Cloud 3D Wheel Aligner Installation Without Calibration
Cases of High Quality Cloud 3D Wheel Aligner:
