Simplest 3D Wheel Aligner
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air, DHL
- Port:
- Hongkong, Yantian, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300/month |
| Supply Ability: | 300/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Air,DHL |
| Port: | Hongkong,Yantian,Shenzhen |

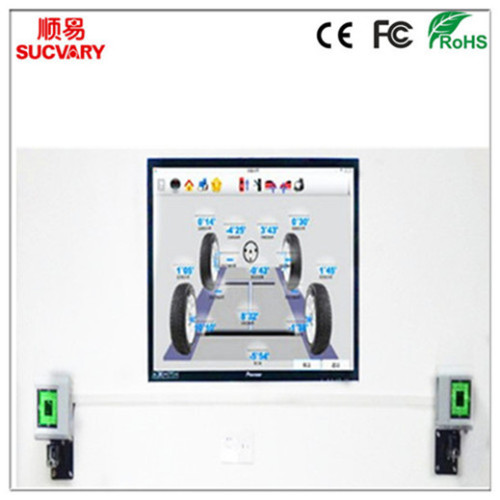

Without beam and calibrate, simplest 3D wheel aligner applies new technology. The middle camera can search the balance of two sensors. Simplest 3D wheel aligner has varied ways of installation, so space can be saved.
Advantages of Simplest 3D Wheel Aligner:
1. Wheel Aligner for Vehicle Diagnosis can save space with different installation patterns.
2. Wheel Alignment Frequency has 3 cameras, the reference plane is car body, so 3 Cameras Wheel Alignment can measure almost all kinds of vehicles.
3. DIY 3D Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.
4. Supported by powerful cloud service, Wifi Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.
5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.
6. Measurement range is wide, and Cloud 3D wheel alignment can also test wheel deviation besides all traditional parameters.
7. The optional one point wheel clamps can be installed within four seconds.
Measurement Range and Accuracy of Simplest 3D Wheel Aligner
|
References |
Accuracy |
Measurement range |
|
Camber |
±0.01° |
±8° |
|
Caster |
±0.03° |
±19° |
|
K.P.I |
±0.02° |
±19° |
|
Toe |
±0.01° |
±2° |
|
Rear Wheel Thrust Angle |
±0.02° |
±2° |
|
Rear Axle Deviation |
±0.02° |
±2° |
|
Track width difference |
±0.02° |
±2° |
|
Front Setback |
±0.02° |
±2° |
|
Rear Setback |
±0.02° |
±2° |
|
Track width |
±0.64cm |
＜265cm |
|
Wheelbase |
±0.64cm |
＜533cm |
Cases of Simplest 3D Wheel Aligner:
