T-shape Installation 3D Wheel Alignment

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air, DHL

Port:: HongKong, Shenzhen, Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	300/month
Supply Ability:	300/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Certificate:	CE,FCC,RoHS
Transportation:	Ocean,Air,DHL
Port:	HongKong,Shenzhen,Yantian

Product Description

T-shape installation 3D wheel alignment is high precision wheel alignment for scissors lift wheel alignment. T-shape installation 3D wheel alignment has 3 cameras and four targets are exchangeable. It has finished once calibration in factory and does not need to calibration any more.

Advantages of T-shape Installation 3D Wheel Alignment:

1. DIY 3D wheel alignment can save space with different installation patterns.

2. Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so Cloud 3D wheel alignment can measure almost all kinds of vehicles.

3. Wifi Wheel Alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4. Supported by powerful cloud service, Garage 3D Wheel Alignment can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5. Four targets are crash resistant and can be exchanged. Fix wheel claws without taking apart wheel hub cover.

6. Measurement range is wide, and 3 Cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.

7. The optional one point wheel clamps can be installed within four seconds.

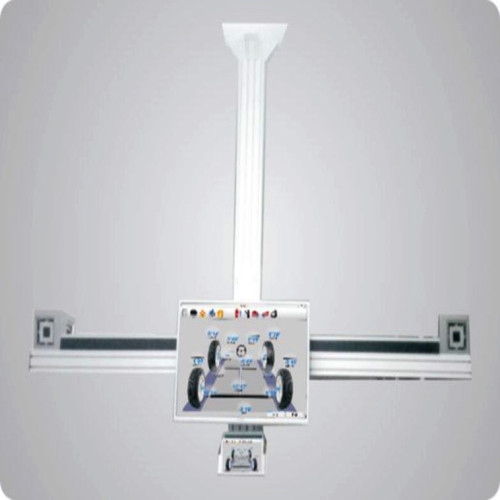

T-shape Installation 3D Wheel Alignment

Measurement range and accuracy of T-shape Installation 3D Wheel Alignment

References	Accuracy	Measurement range
Camber	±0.01°	±8°
Caster	±0.03°	±19°
K.P.I	±0.02°	±19°
Toe	±0.01°	±2°
Rear Wheel Thrust Angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track width difference	±0.02°	±2°
Front Setback	±0.02°	±2°
Rear Setback	±0.02°	±2°
Track width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm
