SPdif Toslink Audio Matrix 4 In and 2 Out

• SPdif Toslink Audio Matrix 4 In and 2 Out Introduction:

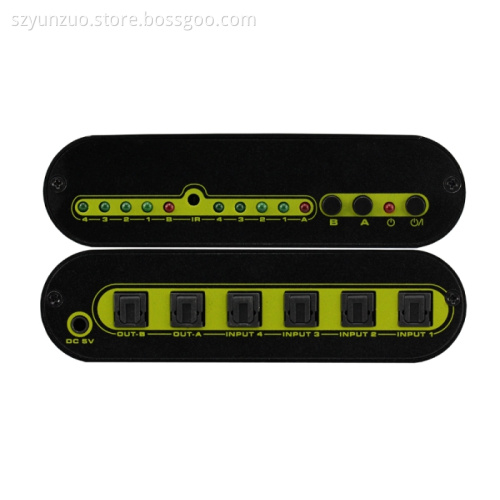

  This Optical SPDIF/TOSLink 4x2 Matrix could put the four sets of SPDIF output signal source and two SPDIF input device connected. It can be easily split or switched between four SPDIF signal and two SPDIF signal receiving equipment. Especially support any 2 Inputs to any Output at the same time, even any 2 inputs to A and B Output at the same time.

• Features
• TOSLINK/SPDIF Digital Optical Audio 4x2 Matrix switch or split 4 way Optical SPDIF / TOSLink audio to 2 way  Optical / SPDIF / TOSLink Audio. The two outputs share the same input or be from two different inputs.
• Supports Dolby Digital & DTS 5.1, Dolby Digital Plus; Support PCM Stereo 32kHz, 44.1kHz, 48kHz and 96kHz; New & Play
• Audio format support: LPCM2.0/DTS/Dolby-AC3
• Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
• This audio selector switch can be selected through remote control or button on the switch
• Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine, if the light for standby indication flashed, it shows that the output voltage from the power adapter is too high and the adapter needs to be changed
• No loss of quality
• Installs in minutes
• Need DC5V / 500mA power supply

SPECIFICATIONS:
Support audio format ...................................................... LPCM 2.0 / Dolby-AC3
Peak wavelength...................................................................................650nm
Max baud rate.....................................................................................16Mbps
Output cable distance.........≤40m (Use the optical fiber cable loss less the o.2Db/m)
Max working current .............................................................................100mA
Power adapter format........Input: AC(50Hz, 60Hz) 100V-240V; Output: DC5V/500mA
Operating Temperature range..........................................................(0 to +40℃)
Operating Humidity range......................................5 to 90%RH(No Condensation)
Dimension (L x W x H)....................................................128 x 93.5 x 33.5(mm)
Weight..................................................................................................185g

Certification: CE FCC RoHS

Package Content:

1. TOSLINK/SPDIF Digital Optical Audio 4x2 Matrix

2. 5V Power Adaptor
3. Operation Manual
4. Remote control
