HY-ET31050-P-E 50M Wall plate Extender
HY-ET31050-P-E 50M Wall plate Extender Introduction:
Single Cat5e/6 Wal l Plate Extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio
and control , output through HDMI interfaces. It also supports bi-direction remote IR(RX-TX and TX-RX), power over. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.
HY-ET31050-P-E 50M Wall plate Extender Features
Exending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fps and 200ft(60 meters) at 1080i/720P through single CAT5e cable.
Supports audio formats, Dolby True HD, DTS-master, etc.
Supports 3D signals (all 7 formats), such as Frame Packing, Side-by-side, Top-to-Bottom, etc.
Supports EDID learning.
VESA DDC and hot swap technology(HPD).
Supports power over UTP cable, single 12V DC power supply from any side of TX or RX.
Bi-direction remote IR(RX-TX and TX-RX).
Be compatible with DVI 1.0.
Supports cascade to enhance extending distance.
HY-ET31050-P-E 50M Wall plate Extender Specifications
Transmitter.....................HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in.
Receiver.......................HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45 Ethernet interface, 12V DC in.
Power.............................................................< < 3.5W TX or 2.5W RX
Dimension(L x W x H)..........................................Transmitter: 115x70x34mm Receiver: 115x70x34mm
Net weight............................................................Transmitter: 70g Receiver: 70g
Video bandwidth..................................................Maximum TMDS clock frequency 165MHz, 4.95Gbps
Resolution and distance......................1080P 170ft(50meters)-CAT5e/ -CAT6 200ft(60meters),720P/1080i -CAT5e/270ft(80meters)-CAT6 200ft(60meters)
Audio formats.......................................................8-channel, support Dolby True HD and DTS Master
TMDS input signal...............................................1.2 volts (point to point)
DDC input signal...................................................5 volts (point to point)
Indicator................................................................Power:Red,video l ink: green
HDMI interface standard ........................HDMI 1.3 standard (HDMI 1.4b 3D function), HDCP 1.2, support EDID
Remote IR..........................................................38KHz(Model A) or 20-60KHz(Model B)
ESD level.............................................................HBM +8KV(Contact Dischatge) -
Temperature range..............................................0~40°C(operation), -20~60°C(stock)
Compliance...........................................................FCC, CE, RoHS
Certificates: CE, FCC, RoHs and UL

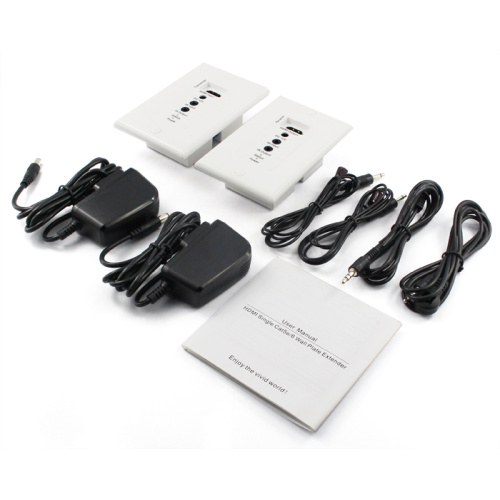

HY-ET31050-P-E 50M Wall plate Extender Package Content
Transmitter x1
Receiver x1
IR blaster x2
IR receiver x2
DC 12V/1A adapter x1
User manual x1
