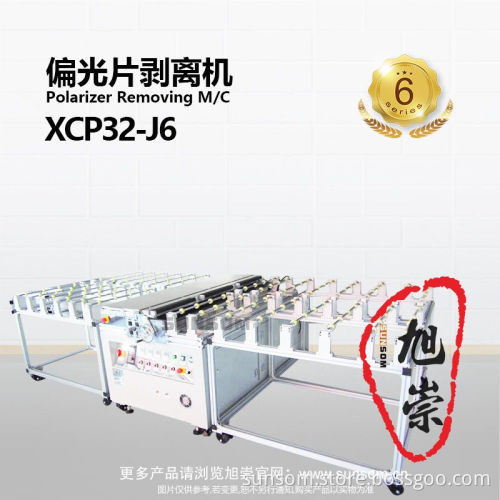

Polarizer Removing Machine XCP32-J6

Application:

1. The machine is used for removing polarizer from various LCD panels.

2. Widely used in a variety of LCD screen polarizer remove.

Features:

1. Ultra-small gap platform with closed & opened structure design to protect glass, and ensure feedstock and return scrap material at same time.

2. Anti-static connecting rolls decrease damaged and electrostatic eliminating during delaminating caused by level or resistance.

3. Temperature controllers with PID temperature self-setting function ensure the accuracy.

4. Removing area connect with platform add double anti-static clubs to eliminate static.

5. Removable rack is more convenient to convey.

6. Group of adjusting roller enables any angle of polarizer remove.

7. Speed converter ensures removing steady and uniformly.

8. System of separation and reunion can avoid damage rate that caused by power loss of motor and moving resistance.

Basic Parameter:

Input Power: AC220V 50-60Hz

NO. of thermocouples: 4

Rated Power: 3-3.5KW

Temperature range: RT-100 degree (adjustable)

Dimension: L4460*W2700*H940mm

Controlling program: Relay (OMRON)

Operating Mode: Button operation

Static Elimination: Ion Wind (3 anti-static clubs)

Method of Heating: Constant Temperature

Material of Machine: Steel and Aluminum

Available Size: Within 85 inches (can be customized)

Thermocouple: K type

Accessories:

Tape, Ethanol

Tools:

Cutter, Sprayer
