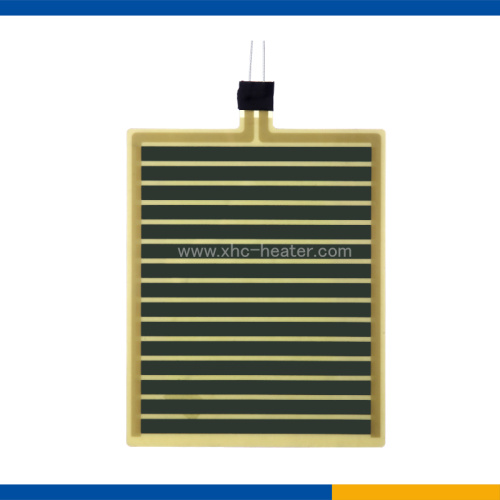

Far infrared Sauna Room Heating Elements

Product Description

This product is Carbon printing, with the Far Infrared function. It's good for people health. Far infrared radiation which likes the sun radiaiton, can penetrate deep into your body , speed up your body metabolism. The Heating Film can be made as your request, such as the voltage, power, size, temperature etc. We strictly select Raw materiale international for our products,to ensure our product are nearly 100% pass rate when loading. We have established the ISO9001 quality management system and have passed the ISO14000 and OHSAS18000.

All the products after the accouting,we will offer the lowest price to you.

Specifications

Input voltage:AC 220V

Initial resistance:271-300Ω,standard resistance 285Ω(Silver plasma resistor within 4Ω)

Power:170W±5%

high voltage resistance:3750V 5mA  5s(aluminum foils)

Insulation resistance:≥100MΩ500Vdc

lead strain:≥5Kgf/1min not shed

Construction.Size:

1. Size:T0.75*350*670mm,±2mm

2. Have the PTC effect, namely after the electricity power will become smaller,stable power and initial power differ between 5% and 15%

3. Raw material comply to ROHS

4. Printing related product information on each film

5.After 10mins electrify  275V on Off-Contact Bottom of heating film the surface without air bubbles

6. Heating film surface temperature uniformity

Certificate:

We appreciated your interest in our product

Please advise us below info. for our reference and get contact with us to find your best heating solution. size, max temperature, voltage, wattage, Application

Shipment:

a) For Sample order, we use courier like DHL,UPS,TNT,Fedex,EMS,customer also can assign the courier.

b) For large order, we could use courier or boat cargo or other special forwarder.

c) Customers can also assign the forwarder to make the transportation.

Trade Terms:

1, Payment: TT, Western Union, Paypal, L/C.

2, Sample can be supplied.

3, Shipping freight are quoted under your requests.

4, Loading port: Shenzhen, China.

5, Discounts are offered based upon your quantities.

Factory Introduction:
Shenzhen Xinghongchang Electric Co., Ltd was built in 1996,is a professional heating element manufacturer where located in Huizhou. With more than 20 years experiences of producing heating elements, we specialized in the field of far infrared heating film and heat pads for pet and reptile, leading a innovation energy source of heating systems.
With our R&D team and professional facility, we are able to manufacture, export and supply to our customers with excellent quality Far Infrared Heating Film.We had certificated in BV, ISO9001/ 14001 / 18000.And Our product already got approval of  CE,RoHS, Ul, ETL, etc.
The high quality and competitive price of XHC products make us to be the close partner of world famous brand suppliers, such as , Samsung, LG, Simfer, Kohler,Panasonic, BROAN,etc.
We are 100%willing and interesting in grow up with our each clients together.
