Rechargeable Aa Lithium Batteries and Charger
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

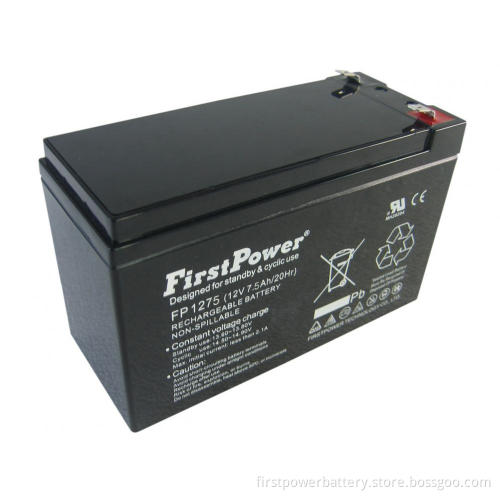

LFP1275FT is a typical high rate discharge battery special designed for all kinds of high-power-ouput using application,
It is a non-spillable and sealed and Maintenance-free operation battery, with high quality and high reliability, good deep discharge recovery, low self-discharge ,etc. The battery apply solid copper terminals,tank-formed plates computer-aided design and manufacturing
Main features as follow:
* Standby use.
* High rate discharge construction.Rechargeable Batteries and Charger Aa
* ISO9001, 14001, OHSMS 18001 certified.* UL, CE, VdS Approved. UL recognized components under UL 1989 (file number MH28204 ).
*With isolated seal, it can be put in horizontal way, vertical way and side way, its safety and functions totally will not be affected.
* With special formula to manufacture lead calcium alloy as well as automatic progresses, gassing will be less.
* Long life, low self-discharge rate and high reliability.
* It has safety, low resistance so recharge is easy and energy output is more remarkable.
* Container material could be frame retardant ABS or PP with ranking UL 94V-0 by model.
* When it is used in safe surroundings, the battery is maintenance free, adding water is unnecessary and it can be recharged repeatedly.
* Batteries are strictly tested by computer charge/discharge system.
* Complies with IATA/ICAO Special Provision A67 for air transport.
* Classified per MG Amendment 27 as a non-hazardous material for water transport.
* Recognized by DOT as "Dry charge" 49 CFR 171-189 for surface transport.
S
Specifications
|
Nominal Voltage |
12 V |
||
|
Capacity (25℃) |
10HR(10.8V) |
75 Ah |
|
|
5HR(10.5V) |
65Ah |
||
|
1HR(9.60V) |
46.5Ah |
||
|
Dimension |
Length |
562±2mm (22.13inch) |
|
|
Width |
114±2mm (4.49inch) |
||
|
Height |
189±2mm (7.44inch) |
||
|
Total Height |
189±2mm (7.44inch) |
||
|
Approx. Weight |
25kg (55.1lbs)±4% |
||
|
Terminal type |
M8 threaded post |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 6mΩ |
||
|
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 91% |
|
|
6 month |
Remaining Capacity: 82% |
||
|
12 month |
Remaining Capacity: 65% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
||
|
Storage |
-20℃~50℃(-4℉~122℉) |
||
|
Float charging voltage(25℃) |
13.50 to 13.80V Temperature compensation: -18mV/℃ |
||
|
Cyclic charging voltage(25℃) |
14.50 to 14.90V Temperature compensation: -30mV/℃ |
||
|
Maximum charging current |
22.5A |
||
|
Terminal material |
M8 threaded post |
||
|
Maximum discharge current |
600A(5 sec.) |
||
|
Designed floating life(20℃) |
15 years |
||
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
121 |
73.5 |
46.5 |
27.4 |
19.1 |
15.7 |
13.4 |
11.7 |
9.18 |
7.64 |
4.01 |
|
9.90V |
118 |
72.0 |
45.8 |
27.2 |
19.0 |
15.6 |
13.3 |
11.6 |
9.13 |
7.62 |
4.00 |
|
10.2V |
114 |
69.8 |
44.6 |
27.0 |
18.9 |
15.5 |
13.2 |
11.6 |
9.06 |
7.60 |
3.99 |
|
10.5V |
110 |
68.1 |
43.8 |
26.6 |
18.8 |
15.4 |
13.1 |
11.5 |
9.00 |
7.55 |
3.97 |
|
10.8V |
104 |
65.6 |
42.4 |
25.9 |
18.2 |
14.9 |
12.7 |
11.1 |
8.73 |
7.50 |
3.94 |
Constant Power Discharge Characteristics (Watt, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
1332 |
825 |
530 |
317 |
225 |
184 |
158 |
138 |
109 |
91.2 |
48.1 |
|
9.90V |
1300 |
808 |
522 |
315 |
224 |
183 |
157 |
138 |
108 |
91.0 |
48.0 |
|
10.2V |
1252 |
783 |
509 |
313 |
222 |
182 |
156 |
137 |
108 |
90.7 |
47.9 |
|
10.5V |
1209 |
764 |
499 |
308 |
221 |
181 |
155 |
136 |
107 |
90.2 |
47.6 |
|
10.8V |
1145 |
736 |
483 |
300 |
214 |
175 |
150 |
132 |
104 |
89.6 |
47.3 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
Typical Applications:
Alarm System
Cable Television
Communication Equipment
Control Equipment
Security System
Medical Equipment
UPS
Power Tools
Toys
Emergency Power System
