Reserve Deep Cycle Battery 12V60AH Wind Power Battery
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

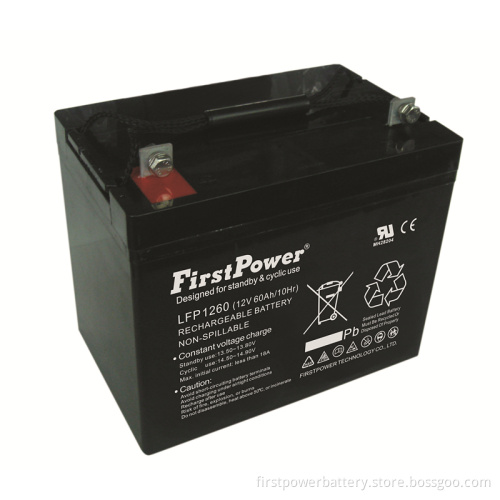

Reserve Deep Cycle Battery LFP1260BD,capacity :12V60Ah batteries is Sealed Lead Acid Battery. At a higher temperature, the capacity of battery increases and conversely at a lower temperature, the capacity of battery decreases. Figure 4 shows the effects of different temperature in relation to battery capacity.
can be used for just about every application, including: UPS Backup Systems, Alarm Systems, Fire Alarm Systems, Medical Equipment, Test Equipment, and much more.
Specifications
|
Nominal Voltage |
12 V |
||
|
Capacity (25℃) |
10HR(10.8V) |
60 Ah |
|
|
5HR(10.5V) |
48Ah |
||
|
1HR(9.60V) |
37 Ah |
||
|
Dimension |
Length |
250±2mm (9.84inch) |
|
|
Width |
160±1mm (6.30inch) |
||
|
Height |
176±2mm (6.93inch) |
||
|
Total Height |
179±2mm (7.05inch) |
||
|
Approx. Weight |
18.5kg (40.8lbs)±4% |
||
|
Terminal type |
T9 |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 6mΩ |
||
|
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 91% |
|
|
6 month |
Remaining Capacity: 82% |
||
|
12 month |
Remaining Capacity: 65% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
||
|
Storage |
-20℃~50℃(-4℉~122℉) |
||
|
Float charging voltage(25℃) |
13.50 to 13.80V Temperature compensation: -18mV/℃ |
||
|
Cyclic charging voltage(25℃) |
14.50 to 14.90V Temperature compensation: -30mV/℃ |
||
|
Maximum charging current |
18A |
||
|
Terminal material |
Copper |
||
|
Maximum discharge current |
600A(5 sec.) |
||
|
Designed floating life(20℃) |
15 years |
||
◆ Absorbent glass mat technology;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
10min |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
8h |
10h |
20h |
|
9.60V |
129 |
100 |
60.6 |
37.0 |
21.9 |
15.3 |
12.5 |
10.1 |
7.34 |
6.11 |
3.21 |
|
9.90V |
125 |
97.6 |
59.4 |
36.8 |
21.8 |
15.2 |
12.5 |
9.89 |
7.30 |
6.10 |
3.20 |
|
10.2V |
120 |
94.0 |
57.6 |
35.1 |
21.6 |
15.1 |
12.4 |
9.78 |
7.25 |
6.08 |
3.19 |
|
10.5V |
114 |
90.8 |
56.2 |
34.4 |
21.3 |
15.0 |
12.3 |
9.60 |
7.20 |
6.04 |
3.17 |
|
10.8V |
108 |
86.0 |
54.1 |
33.3 |
20.7 |
14.6 |
11.9 |
9.52 |
6.98 |
6.00 |
3.15 |
Constant Power Discharge Characteristics (Watt, 25℃)
|
F.V/TIME |
10min |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
8h |
10h |
20h |
|
9.60V |
1388 |
1098 |
680 |
428 |
254 |
180 |
148 |
127 |
87.2 |
72.9 |
38.5 |
|
9.90V |
1346 |
1072 |
666 |
422 |
252 |
179 |
147 |
126 |
86.7 |
72.8 |
38.4 |
|
10.2V |
1291 |
1032 |
646 |
411 |
250 |
178 |
146 |
125 |
86.1 |
72.6 |
38.3 |
|
10.5V |
1235 |
997 |
630 |
403 |
246 |
176 |
145 |
124 |
85.5 |
72.1 |
38.1 |
|
10.8V |
1166 |
944 |
607 |
391 |
240 |
171 |
140 |
120 |
83.0 |
71.6 |
37.8 |
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
FP Series Battery General Features
- Nonspillable
- Sealed and Maintenance-free Operation
- High Quality and High Reliability
- Exceptional Deep Discharge Recovery
- Low Self-discharge
- Long Service Life
- Solid Copper Terminals
- Tank-formed Plates
- Computer-aided Design and Manufacturing
- UL, CE, VdS Approved
Typical Applications
- Telecommunication equipment
- Electronic instruments
- Fire alarm
- Security devices
- UPS power supply
- Emergency lighting
