Reserve GEL Electric Powered Bicycle Battery 12V134AH
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |

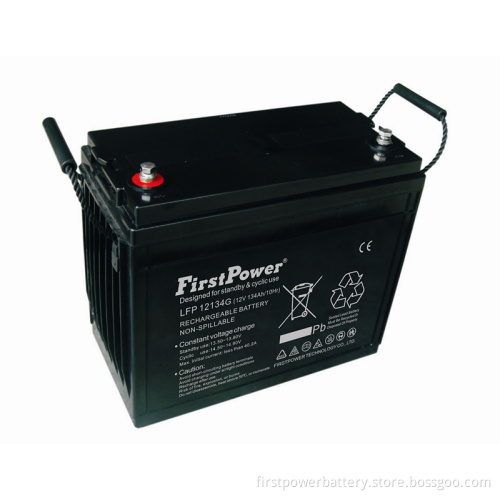

Reserve GEL Battery LFPG12134,capacity :12V134Ah batteries is Sealed Lead Acid Battery. For using the sealed design, over-charging will dry out the electrolyte by driving the oxygen and hydrogen out of the battery, through the safety valves. Capacity is reduced and life is shortened If a battery is continually under-charged, a power robbing layer of sulfate will
buildup on the plates. Battery performance is reduce, life is reduced.So what is important for gelled battery that is: charge at
least 2.30V/Cell volts but no more than 2.35V/Cell volts at 68OF(20OC) for cycle use,2.25~2.30V standby use.
Constant current chargers should never be used on gelled battery.
can be used for just about every application, including: UPS Backup Systems, Alarm Systems, Fire Alarm Systems, Medical Equipment, Test Equipment, and much more.
Specifications
|
Nominal Voltage |
12 V |
||
|
Capacity (25℃) |
20HR(10.5V) |
134Ah |
|
|
5HR(10.5V) |
104Ah |
||
|
1HR(10.5V) |
78Ah |
||
|
Dimension |
Length |
342±2mm (13.46inch) |
|
|
Width |
172±2mm (6.77inch) |
||
|
Height |
280±2mm (11.02inch) |
||
|
Total Height |
285±2mm (11.22inch) |
||
|
Approx. Weight |
44kg (96.9lbs) ±4% |
||
|
Terminal type |
T11 |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 4.0mΩ |
||
|
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 93% |
|
|
6 month |
Remaining Capacity: 85% |
||
|
12 month |
Remaining Capacity: 72% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
||
|
Storage |
-20℃~50℃(-4℉~122℉) |
||
|
Float charging voltage(25℃) |
13.50 to 13.80V Temperature compensation: -18mV/℃ |
||
|
Cyclic charging voltage(25℃) |
13.80 to 14.10V Temperature compensation: -30mV/℃ |
||
|
Maximum charging current |
26.8A |
||
|
Terminal material |
Copper |
||
|
Maximum discharge current |
800A(5 sec.) |
||
|
Designed floating life(20℃) |
12~15 years |
||
◆ Gelled electrolyte technology;
◆ PVC separator;
◆ Recognized by UL & CE;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
181 |
125 |
78.0 |
45.6 |
32.1 |
25.3 |
21.2 |
18.0 |
14.1 |
12.5 |
6.85 |
|
9.90V |
177 |
122 |
76.8 |
45.3 |
31.9 |
25.1 |
21.1 |
17.9 |
14.0 |
12.5 |
6.83 |
|
10.2V |
170 |
119 |
74.9 |
44.9 |
31.7 |
25.0 |
20.9 |
17.8 |
13.9 |
12.5 |
6.81 |
|
10.5V |
164 |
116 |
73.4 |
44.2 |
31.5 |
24.8 |
20.8 |
17.7 |
13.8 |
12.4 |
6.70 |
|
10.8V |
156 |
112 |
71.1 |
43.1 |
30.5 |
24.0 |
20.1 |
17.2 |
13.4 |
12.3 |
6.73 |
Constant Power Discharge Characteristics (Watt, 25℃)
|
F.V/TIME |
15min |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
|
9.60V |
2019 |
1424 |
898 |
530 |
380 |
299 |
252 |
214 |
168 |
151 |
82.6 |
|
9.90V |
1970 |
1395 |
885 |
527 |
377 |
297 |
250 |
213 |
167 |
150 |
82.4 |
|
10.2V |
1898 |
1353 |
862 |
523 |
375 |
295 |
248 |
212 |
166 |
150 |
82.2 |
|
10.5V |
1833 |
1320 |
845 |
515 |
372 |
293 |
247 |
210 |
165 |
149 |
80.8 |
|
10.8V |
1736 |
1271 |
819 |
502 |
361 |
284 |
239 |
204 |
160 |
148 |
81.1 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
FP Series Battery General Features
- Nonspillable
- Sealed and Maintenance-free Operation
- High Quality and High Reliability
- Exceptional Deep Discharge Recovery
- Low Self-discharge
- Long Service Life
- Solid Copper Terminals
- Tank-formed Plates
- Computer-aided Design and Manufacturing
- UL, CE, VdS Approved
Typical Applications
- Telecommunication equipment
- Electronic instruments
- Fire alarm
- Security devices
- UPS power supply
- Emergency lighting
