Reserve Battery Power Generation Plants 2V1200Ah

 Sealed and maintenance free operation.
· Non-Spillable construction design.
· Safety valve installation for explosion proof.
· High quality and high reliability.
· Exceptional deep discharge recovery performance.
· Low self discharge characteristic.
· Flexibility design for multiple install positions.

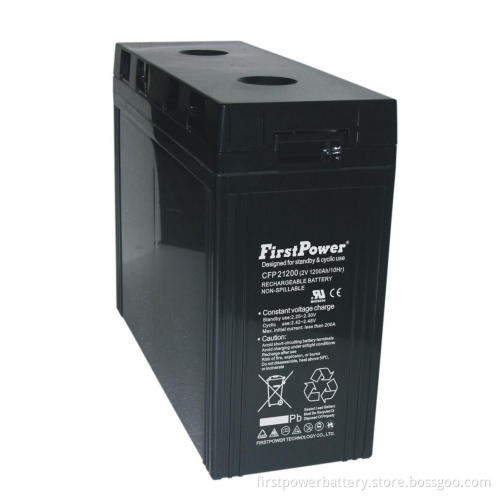

2V Stationary Back-up Battery (CFP21200)

FirstPower Technology Co., Ltd. was set up as a manufacturer of rechargeable batteries in 1993.

FirstPower brings you not only reliable battery and technology, but also excellent services and real value you shall expect and enjoy.We welcome orders with "FirstPower" brand; We are also flexible to accept orders on OEM basis. Contact us now! Your partnership with FirstPower will prove worthy of it.

International certifications:
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
 CFP Series Battery General Features
Nonspillable
Sealed and Maintenance-free Operation
High Quality and High Reliability
Exceptional Deep Discharge Recovery
Low Self-discharge
Long Service Life
Solid Copper Terminals
Tank-formed Plates
Computer-aided Design and Manufacturing
UL, CE, VdS Approved

Typical Applications
Telecommunication equipment
Electronic instruments
Fire alarm
Security devices
UPS power supply
Emergency lighting
Specifications

Nominal Voltage			2 V
Capacity (25ºC)	10HR(1.80V)		1200 Ah
	3HR(1.75V)		918Ah
	1HR(1.75V)		678Ah
Dimension	Length		475±2mm (18.70inch)
	Width		175±2mm (6.89inch)
	Height		330±2mm (12.99inch)
	Total Height		367±2mm (14.45inch)
Approx. Weight			66.5kg (146.7lbs)±3%
Terminal type			T10
Internal resistance (Fully charged, 25ºC)			Approx. 0.25mΩ
Capacity affected by temperature (10HR)		40ºC	102%
		25ºC	100%
		0ºC	85%
		-15ºC	65%
Self-discharge (25ºC)		3 month	Remaining Capacity: 91%
		6 month	Remaining Capacity: 82%
		12 month	Remaining Capacity: 65%
Nominal operating temperature			25ºC±3ºC(77ºF±5ºF)
Operating temperature range		Discharge	-15ºC~50ºC(5ºF~122ºF)
		Charge	-10ºC~50ºC(14ºF~122ºF)
		Storage	-20ºC~50ºC(-4ºF~122ºF)
Float charging voltage(25ºC)			2.25 to 2.30V Temperature compensation: -3mV/ºC
Cyclic charging voltage(25ºC)			2.42 to 2.47V Temperature compensation: -5mV/ºC
Maximum charging current			240A
Terminal material			Copper
Maximum discharge current			8500A(5 sec.)
Designed floating life(20ºC)			20 years

Absorbent glass mat technology;
Recognized by UL & CE;
ABS container.
  Dimensions

Terminal: T10(M8)

Constant Current Discharge Characteristics (A, 25ºC)

F.V/TIME	15min	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h	24h
1.60V	1620	1080	720	438	312	251	218	187	147	122	64.1	55.6
1.65V	1581	1058	709	436	310	249	217	186	146	122	64.0	55.5
1.70V	1523	1026	691	432	308	248	215	185	145	122	63.8	55.3
1.75V	1471	1001	678	426	306	246	214	184	144	121	63.4	55.0
1.80V	1393	964	657	415	297	239	207	178	140	120	63.0	54.6

Constant Power Discharge Characteristics (Watt, 25ºC)

F.V/TIME	15min	30min	60min	2h	3h	4h	5h	6h	8h	10h	20h	24h
1.60V	2965	2020	1368	846	612	492	429	369	292	243	128	112
1.65V	2893	1979	1347	841	608	489	427	367	291	243	128	112
1.70V	2787	1919	1313	834	604	486	424	364	289	242	128	111
1.75V	2692	1872	1287	821	600	482	421	362	287	240	127	111
1.80V	2550	1804	1248	800	582	468	408	351	278	239	126	110

Note: The above characteristics data can be obtained within three charge/discharge cycles.
