Storage power OPzV Survey Mapping system battery 2V3000AH
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 2000, 000kvah/ Year |
| Supply Ability: | 2000, 000kvah/ Year |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | iso,UL,CE |
| Transportation: | Ocean,Land |
Manufacture of cutomizable opzv opzs solar battery
The series of products are widely used in different fields, such as banking, securities, telecommunications, transportation, taxation, health care, education, military, government agencies, scientific research machinery and mining production enterprise.
The series of products has large current discharge performance and good uniformity, high specific energy, long life and other characteristics.
Reliable seal, no leakage, high energy, excellent large current discharge performance.
All the products can be customized .

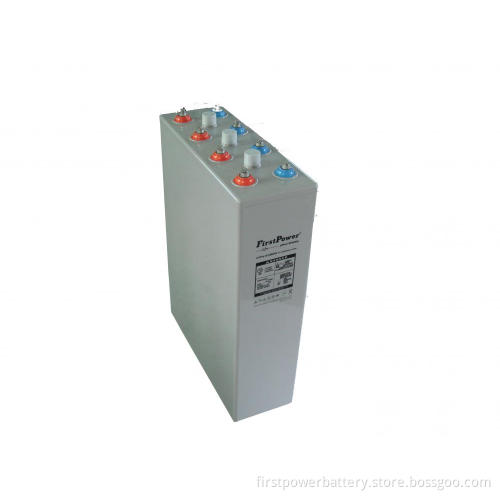

Storage power OPzV battery CFPV23000,capacity :2V3000Ah batteries is Sealed Lead Acid Battery. can be used for just about every application, including: UPS Backup Systems, Alarm Systems, Fire Alarm Systems, Medical Equipment, Test Equipment, and much more.
Specifications
|
Nominal Voltage |
2 V |
||
|
Capacity (25℃) |
10HR(1.80V) |
3000 Ah |
|
|
3HR(1.75V) |
2340Ah |
||
|
1HR(1.75V) |
1609Ah |
||
|
Dimension |
Length |
576±3mm (22.68inch) |
|
|
Width |
212±2mm (8.35inch) |
||
|
Height |
772±3mm (30.39inch) |
||
|
Total Height |
807±3mm (31.77inch) |
||
|
Approx. Weight |
208.7kg (460.0lbs)±4% |
||
|
Terminal type |
T10 |
||
|
Internal resistance (Fully charged, 25℃) |
Approx. 0.13mΩ |
||
|
Capacity affected by temperature (10HR) |
40℃ |
102% |
|
|
25℃ |
100% |
||
|
0℃ |
85% |
||
|
-15℃ |
65% |
||
|
Self-discharge (25℃) |
3 month |
Remaining Capacity: 93% |
|
|
6 month |
Remaining Capacity: 85% |
||
|
12 month |
Remaining Capacity: 72% |
||
|
Nominal operating temperature |
25℃±3℃(77℉±5℉) |
||
|
Operating temperature range |
Discharge |
-15℃~50℃(5℉~122℉) |
|
|
Charge |
-10℃~50℃(14℉~122℉) |
||
|
Storage |
-20℃~50℃(-4℉~122℉) |
||
|
Float charging voltage(25℃) |
2.25 to 2.30V Temperature compensation: -3mV/℃ |
||
|
Cyclic charging voltage(25℃) |
2.30 to 2.35V Temperature compensation: -5mV/℃ |
||
|
Maximum charging current |
600A |
||
|
Terminal material |
Copper |
||
|
Maximum discharge current |
12000A(5 sec.) |
||
|
Designed floating life(20℃) |
20 years |
||
|
|
|
|
|
◆ Gelled electrolyte technology;
◆ Tubular Positive Plate;
◆ ABS container.
Constant Current Discharge Characteristics (A, 25℃)
|
F.V/TIME |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
24h |
48h |
72h |
100h |
120h |
|
1.60V |
2550 |
1710 |
1035 |
796 |
643 |
548 |
471 |
370 |
305 |
162 |
139 |
74.1 |
50.5 |
37.0 |
31.5 |
|
1.65V |
2499 |
1684 |
1029 |
791 |
639 |
545 |
468 |
368 |
305 |
162 |
139 |
73.8 |
50.3 |
36.9 |
31.4 |
|
1.70V |
2423 |
1642 |
1020 |
785 |
634 |
541 |
465 |
366 |
304 |
161 |
138 |
73.5 |
50.1 |
36.8 |
31.3 |
|
1.75V |
2364 |
1609 |
1005 |
780 |
630 |
537 |
462 |
363 |
302 |
160 |
138 |
73.1 |
49.8 |
36.6 |
31.1 |
|
1.80V |
2277 |
1560 |
979 |
757 |
611 |
521 |
448 |
352 |
300 |
159 |
137 |
72.6 |
49.5 |
36.3 |
30.9 |
Constant Power Discharge Characteristics (Watt, 25℃)
|
F.V/TIME |
30min |
60min |
2h |
3h |
4h |
5h |
6h |
8h |
10h |
20h |
24h |
48h |
72h |
100h |
120h |
|
1.60V |
4769 |
3249 |
1998 |
1559 |
1259 |
1079 |
928 |
733 |
608 |
324 |
280 |
149.6 |
103.0 |
75.9 |
64.6 |
|
1.65V |
4673 |
3200 |
1986 |
1550 |
1252 |
1073 |
923 |
729 |
607 |
323 |
280 |
149.1 |
102.7 |
75.7 |
64.4 |
|
1.70V |
4530 |
3119 |
1969 |
1540 |
1243 |
1065 |
917 |
724 |
605 |
322 |
278 |
148.6 |
102.3 |
75.4 |
64.2 |
|
1.75V |
4420 |
3057 |
1939 |
1529 |
1235 |
1058 |
910 |
719 |
601 |
320 |
277 |
147.7 |
101.7 |
74.9 |
63.8 |
|
1.80V |
4258 |
2963 |
1890 |
1483 |
1198 |
1026 |
883 |
697 |
597 |
318 |
276 |
146.7 |
101.0 |
74.4 |
63.3 |
Note: The above characteristics data can be obtained within three charge/discharge cycles.
ISO9001 approval, FN: Q3105105131
ISO14001 CTC04912E10302ROM
OHS MS18001 04912S10150ROM
UL approval, FN:MH28204
CE approval, FN:G2M20201-0102-E-16
KS approval, FN:KS C 8519
VDS approval
BS approval
FP Series Battery General Features
- Nonspillable
- Sealed and Maintenance-free Operation
- High Quality and High Reliability
- Exceptional Deep Discharge Recovery
- Low Self-discharge
- Long Service Life
- Solid Copper Terminals
- Tank-formed Plates
- Computer-aided Design and Manufacturing
- UL, CE, VdS Approved
Typical Applications
- Telecommunication equipment
- Electronic instruments
- Fire alarm
- Security devices
- UPS power supply
- Emergency lighting
