New 20mm Diameter WS2811 LED Ball Light String
20mm led ball string light
Products Description
The 20MM 3D LED Ball Light is DC12V working voltage
Each piece of DC12V 20MM 3D LED Ball have 2pcs high brightness SMD RGB 5050 led
Each one of 20MM 3D LED Ball is one pixel, 3 channels
The DC12V 3D LED Ball can make 20pcs, 30pcs, 40pcs and 50pcs as one string
The LED Ball String Light is SPI protocol, and can be controlled by DMX512 controller with SPI converter
Two solutions for your reference:
1) SPI 3D LED Ball +Decoder +DMX Artnet controller + Madrix software
2) SPI 3D LED Ball + Nebula Controller + Madrix software
Customized introduction
The minimum pitch (center to center) is 5CM, and max 80pcs led ball per string. Only need power from one end, max length 4M, which means when you do 10CM pitch, you can get max 40 pcs 20mm diameter led ball per string.
Parameters
|
Model |
LED-3DB20SPI0201 |
LED-3DB50DMX0401 |
LED-3DB80DMX0301 |
LED-3DB14DMX0201 |
|
|
Product Name |
20mm 3D LED Ball |
50mm 3D LED Ball |
80mm 3D LED Ball |
14mm 3D LED Ball |
|
|
Housing Diameter |
Ø20mm |
Ø50mm |
Ø80mm |
Ø14mm |
|
|
Housing Color |
Milky |
Frosted/clear |
Milky/Clear |
Milky |
|
|
Housing Material |
PC |
Acrylic |
PC |
Acrylic |
|
|
LED Qty |
2 pcs SMD RGB 5050 |
4 pcs SMD RGB 5050 |
3 pcs SMD RGB 5050 |
2 pcs SMD RGB 5050 |
|
|
Input Voltage |
12V DC |
15V DC |
12V DC |
7.5V DC |
|
|
Power |
0.72W/PC |
0.9W/PC |
0.72W/PC |
0.5W/PC |
|
|
Protocol |
SPI/DMX with 1903Decoder |
DMX |
DMX |
SPI/DMX |
|
|
Dimming/Control Mode |
DMX 512/DMX Artnet/DVI/Standalone Control |
||||
|
Protection |
IP53/IP65 |
IP54/IP65 |
IP53/IP65 |
IP53/IP65 |
|
|
Working Temperature |
-20-+60degree Celsius |
||||
|
Lifespan |
50,000 hours |
||||
|
Weight |
0.0056KG/PC |
0.1KG/PC |
0.18KG/PC |
0.0033KG/PC |
|
|
Guarantee |
2 years |
||||

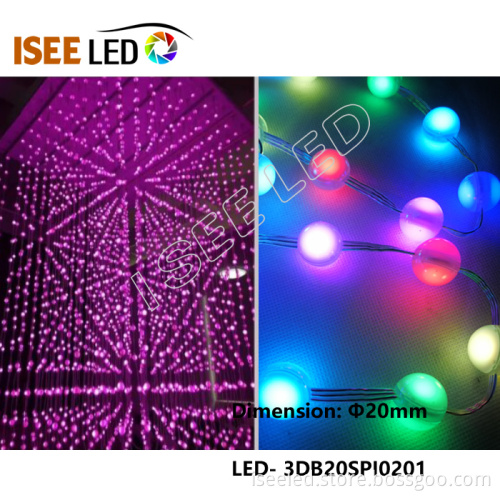

Photo Show
