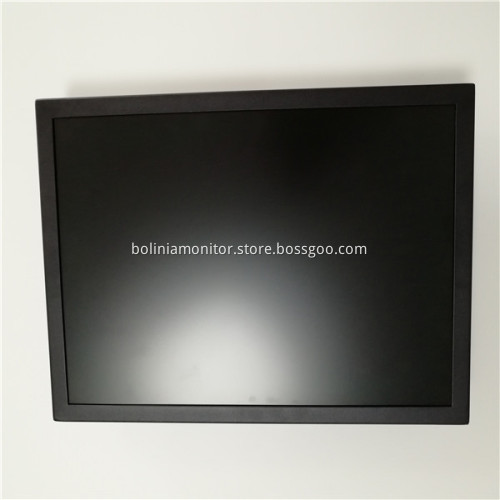

HD-SDI monitor 15 inch

15 inch SDI Monitor for broadcasting Systems like conferences and TV stations. 1024*768 resolution; XLR power connector embedded to monitor interface; High brightness or reversing function are optional for this model. Rugged metal case with industrial level quality. 3D-SDI signal will automatically compatible with HD-SDI signals. Other function like VGA, HDMI, DVI and BNC are workable. There are some other sizes like 17 inch, 19 inch, 19 inch widescreen, 21.5 inch and 22 inches are available.

 • Display: 15.0" TFT High Definition Digital metal casing SDI monitor (4:3)
• Languages: English, Russian, French, Spanish, German, Italian and Chinese
• Resolution: 1024*768 pixels
• Brightness: : 400 cd/squa; optional for 1000 nits
• Contrast ratio: 250:1
• Viewing angles: 80°/ 80°/ 80°/ 80°
• Average life: 50,000 hrs
• Input voltages: 110 to 240V AC
• Output voltage: 12V DC
• Operating temperature: 0 to 50°C/20%-80%(non-condensing)
• Humidity temperature: 0-85% at 40°C (non-condensing)
• Storage temperature: -10 to 60°C/5-95%(non-condensing)
• Horizontal frequency: 30~79KHZ
• Field frequency: 60~75KHZ
• Audio formats:BG/DK/I/ and M/N
• Video input: 1.0Vp-p@75ohm
• Audio input: 500mVrms
• Power consumption: (max) 21W
• Stand-by power consumption: <1.0W
• Storage humidity: 5%~95%
• Loudspeaker output: Max.2.0W Output(16Ω)
• Earphone output:  Max.10mW Output(3.5φStereo Jack,32Ω)
• 12V DC in with 110V-240V AC power adapter

Interface:

BNC*2

DVI*1

VGA*1

HD-SDI *2

HDMI*1

4 PINS XLR POWER CONNECTOR*1

Accessories: VGA cable, BNC cable*2, power adapter and  warranty card.


• 3D digital comb filter with 3D digital noise reduction
• HD Signal with Progressive scan ;
• Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.
• VESA standard wall mount(Metal folded holder optional)
• Accessories: Manual, BNC cable, VGA cable, remote controller, 12VDC power adapter and VESA wall mount (Standard)
• Certification: FCC, CE, RoHS Directive-compliant, CCC
• Mainly used in security monitoring, industry video monitoring or similar fields.

Certification: CCC, FCC, CE, RoHS Directive-compliant

Shenzhen Bolinia Technology Co., Ltd. is a manufacturer for 7-24 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.
Normal plastic or metal monitor from 7 inch to 24 inch.
Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, Lottery terminals, microscopes and similar applications.

Shenzhen Bolinia Technolgoy Co., Ltd. is a manufacturer for 7-32 inch lcd monitors and displays over 10 years. Original factory with assembling line in Shenzhen. Product ranges from plastic monitor, metal monitor, resistive touch monitor, capacitive touch monitor, open frame monitor, embedded monitor to SDI broadcasting monitor. Square monitor or wide screen monitors are available with different resolutions.

Single touch monitor with resistive 4 wire and 5 wire for options from 7 inch to 22 inch.
Multi-touch projected capacitive touch (PCAP Touch or PCT) monitor from 8 inch to 24 inch.
SDI monitor from 15 inch to 21.5 inch.

Products mainly used in ATM, POS, CCTV security, Information checking, Kiosk, BGA repairing station, Lottery terminals, microscopes and similar applications.

 FAQ

Q: How about the lead time?

A: Normally 2-5 workdays for sample order and 15-20 workdays for bulk.

Q: What payment term do you support?

A: T/T in advance, PAYPAL and Western Union.

Q: What's your warranty?

A: All of our products share 12 months' warranty.
