2 Way Electrical Sockets

They are easy to install at the outdoor Garden. We provide waterproof plug in and sockets that remain safe from any shock. Also, the plug in items offered by us vary in their sizes and designs as per the latest industry trend. They are capable to bear high voltage and easily plug in socket without any hassle

·Wide voltage input range: 100-264V

·Working frequency: 50/60HZ

·Water proof level: IP54

Application

·Outside Fountain

·Outside landscape lamp

·Outside Garden light

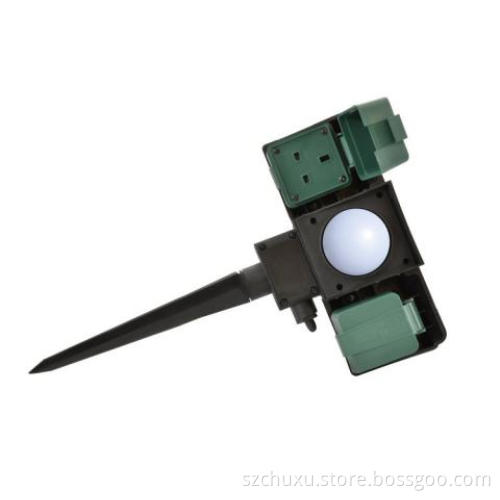

Two Way Outdoor Garden Sockets

Parameters

AC Working frequency: 50/60HZ

AC Rated output current: 10A(2PCS sockets total 10A)

AC Max output current: 16A(2PCS sockets total 16A)

Waterproof level: IP54

AC wire diameter: 1.5mm²

Working temperature: -35℃~+65℃

Installation

·  Carefully unpack contents and check to make sure all parts are present. Following this insert the plastic stake plug into the bottom hole of the sockets.

·  Choose a suitable location for the AC socket giving careful consideration to the nearest suitable outlet, trip hazard etc. Push the socket firmly into the ground and plug in the socket.

·  Lastly, insert the appliance into the 2 sockets.

·  There are two different power options, with the switch on the backside.

  On: The power will always be on.

  Sensor: The power will only be on from dusk till dawn.

Attention

·  This product has a waterproof level of IP54, this means it can with stand splashes of water, but not large bodies of water.

·  This product contains 2 built-in sockets. If you are only using one socket the rated current can reach 10A, with a max. current of 13A, but reaching 13A for extended periods of time can damage the socket and internal components, therefore must be avoided.

·  If you use 2 sockets at a time the max. current should not exceed 16A.
