RGBS to AV,RGBS to S-video,CGA to AV

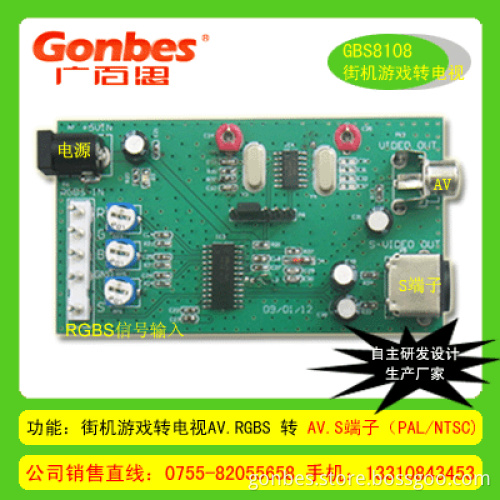

PRODUCT MODEL:GBS8108

NOTE
The high definition converter GBS-8108 it’s professional of games convert.  Support all arcade games (Amusement) convert to

TV monitor. Now you can play arcade game on you any television or record video with you VCR share to you friends.

FEATURES
Supports CGA/EGA signal input.
Supports PAL and NTSC.
Supports video output and S-video output.
True digital 24-bit A/D converter for true 16.7-million color conversion.

SPECIFICATIONS
Power DC5V 2A  +/- 0.5v  P7 or P11
Input  signal
 CGA/EGA 15.625 KHz   60Hz Auto scan
 P6
  15.750 KHz   50Hz
Output signal Video CVBS  480p P10
 S-video Y/C    480p P9
User control PAL/NTSC switches, Definition adjust, R\G\B gains adjust. PAL/NTSC SW
R\G\B VR
Dimensions 90*50*15mm

FAQ
No signal on you monitor
-please check input and output cable, make sure all cable it’s connected. And make sure power it’s on.
Images shake or not clear.
   -please adjust N-OPT or adjust P-OPT.
The picture it’s B/W, not color.
   -please set PAL/NTSC.
Image color not right
   -please adjust R\G\B VR.
