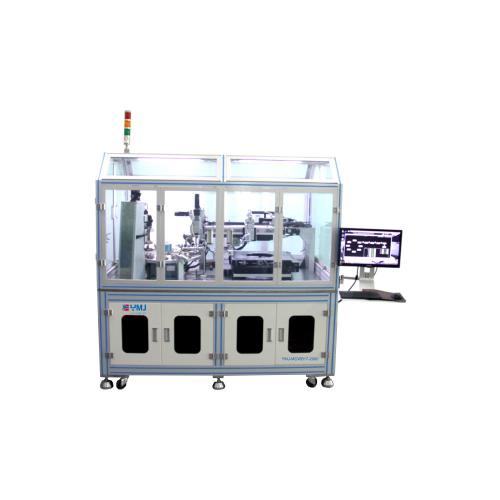

Full Auto Coil Winding and Bonding Machine
- Payment Type:
- L/C, T/T
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T |
|---|---|
| Transportation: | Ocean |
| Port: | Shenzhen |
Feature:
1. It can winding and bonding QFN module in one machine.
2. It include wire feeding, wire winding, wire clamping, wire cutting, QFN module feeding, QFN module and coil bonding, finished product separation collection group.
3. High precision QFN module feeding system.
4. Has QFN module correction before bonding.
5. Bonding QFN module and wire by pulse.
6. Full auto collection system after bonding.
7. There are contactless reader which can separate the good coil and bad coil collection.
8. Can be set product quantity, when machine output up to this quantity, machine will stop and alarm.
9. Only need one operator.
Technical parameter:
1.Dimension:L1.3m*W1.1m* H1.8m
2. Power: 5kW
3. Control:PC
4. Power supply: AC220V~AC230V 50Hz
5. Air pressure: 0.45~0.6MPa
6. Air consumption: About 800L/min
7. Material: 0.1mm wire,
Reel pack for QFN module(size is 180*8mm, 4000pcs/box),
QFN module(size:1.5*2.0mm with ±0.1mm tolerance)
8. Coil requirement:
Number of Turns : 12,
Number of Layers: 4,
Tolerance : ± 0.1mm.
9. Speed: About 600pcs (depend on drawing).
10.Pass rate: 98%
