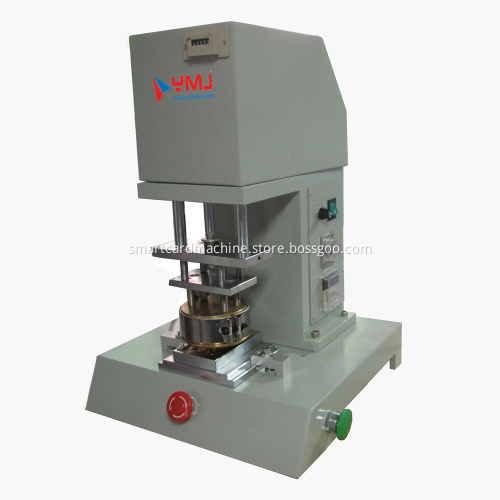

Hot Pressing Manual Chip Welding Embedding Machine
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | ISO, CE |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN |
The biggest advantages of Hot Pressing Manual Chip Welding Embedding Machine are simple operation and easy to maintain. It is embedding chips for smart card industry by the hot pressing. The pressure, temperature and time could be adjusted by operator. This model of embedding machine takes a little space and works with high precision and embedding quality.
Features:
1. Hand operation for module embedding.
2. Temperature and time are adjustable.
3. Easy and simple to operate.
4. Counter can calculate the number of embedding time.
5. It can embed the big module or small module, just need to change the welding head.
6. X & Y of card can be adjusted by micrometer of welding base.
7. Machine suit for embedding single chip, when embed two chip, need transfer the card.
Technical parameter:
|
Dimension: |
L 350*W 450*H 500 mm |
|
Weight: |
20 kg |
|
Power supply: |
AC 220V 50/60Hz 5A |
|
Air pressure: |
6 kg /cm2 |
|
Operator: |
1 person |
|
Applicable materials: |
Different kinds of chips |
