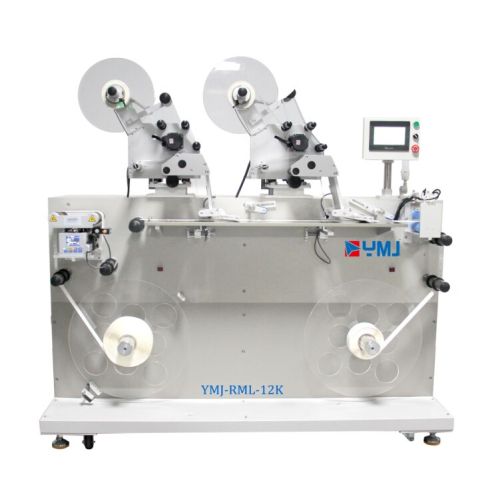

Full Auto Reel Muti-line Labeling Machine(Two heads)

Full Auto Reel Muti-line Labeling Machine(Two heads) suitable for the reel materials labeling . Use the ultrasonic deviation to correct deviation, with high labeling accuracy and excellent quality. Easily to adjustment , high stability, multiple sets of electrical eyes to ensure the stability of the system. Receive material neatly, save production time and cost.

Inner diameter of core :76mm

Outer(Max) :600mm

Width of roll material:20-180mm

Width of  correction roller:200mm

Label roll diameter(Max):350mm

Label width(Max):150mm

Applicable materials:Labeling  the reel materials

Output rate:35m/min above

Labeling accuracy:±0.3mm

Labeling stop accuracy:±0.15mm

Control :PLC

Power:3.5KW

Power supply:AC 220V 50/60Hz

Overall dimensions:About L1965*W860*H1865mm

Weight:500kg

Product percent of pass:99.9%
